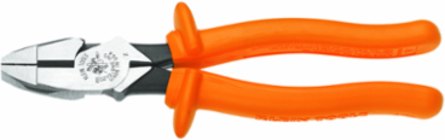

Klein Tools D20009NEINS Insulated Lineman's Pliers 9 Inch, Side Cutting, 1000 Volt Rated
- MPN: D20009NEINS
- UPC: 092644700859
- PPN: KLT-D20009NEINS
- UNSPSC: 27112135
CAD
$134.05
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description

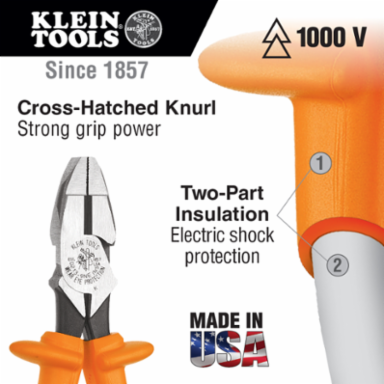

These Klein Tools 9-Inch Insulated Side-Cutting Pliers have jaws knurled with a cross-hatch pattern for excellent gripping. They are made of steel alloy for strength and performance. They also feature flame and impact retardant coating, as well as insulation to protect up to 1000 Volts.
Features
- Pliers are individually tested to meet or exceed the ASTM F1505-16(2021) and IEC 60900:2018 standards, for insulated tools, and clearly marked with the official 1000-volt rating symbol
- Two layers of insulation provide protection against electric shock while the integral guards help prevent hand contact with conductive parts
- Thick, exceptionally tough, high-dielectric white inner coating is bonded to the tool and a flame retardant, impact-resistant, bright orange outer coating
- High-leverage design provides 46-Percent greater cutting and gripping power than other plier designs
- Made in USA
- Cuts ACSR, screws, nails, and most hardened wire
- Precision machined knives cut cleanly and crisply even on fine stranded wire, mule tape and pull line
- Integral Guards Help Prevent Hand Contact With Conductive Parts
Documentation & Downloads
Specifications
Key Specifications
- Cut Style
- Side-Cutting
- Material
- Induction Hardened Steel
- Handle Color
- Orange
- Handle Finish
- 2-Layer Insulation
- Nose Type
- New England
- Jaw Capacity (cm)
- 3.6
- Jaw Length (cm)
- 4
- Knife Length (Inch)
- 0.781
- Weight (g)
- 590
- Jaw Thickness (cm)
- 1.5
- Jaw Width (cm)
- 3.2
- Jaw Width (Inch)
- 1.25
- Overall Length (Inch)
- 9.68
- Height
- 0.6250 in
- Depth
- 9.6250 in
TypeSide Cutting Pliers
ApplicationACSR, Screws, Nails and Most Hardened Wires
InsulatedYes
Joint TypeHot-Riveted
StandardsIEC 60900 and ASTM F1505
Jaw Capacity (Inch)1.43
Handle Length (cm)14.6
Handle Length (Inch)5.73
Weight (oz)20.8
Jaw Length (Inch)1.594
Knife Length (cm)2
Jaw Thickness (Inch)0.6
Overall Length (cm)24.6
Width4.6250 in
Weight1.2500 lbs
