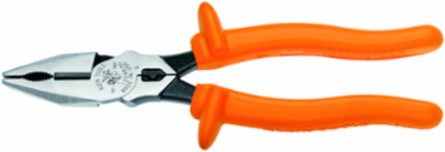

Klein Tools 12098-INS Insulated Universal Combination Pliers 8 Inch, High-Leverage, 1000V Rated
- MPN: 12098-INS
- UPC: 092644700934
- PPN: KLT-12098-INS
- UNSPSC: 27112135
CAD
$128.20
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description

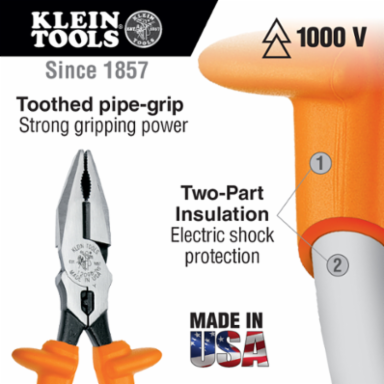

Be protected from up to 1,000 volts of electric current when working near energized sources with Klein's 8-Inch Insulated Universal Combination Pliers. These pliers offer flame-retardant handles, a toothed pipe grip and a high-leverage design, with the rivet closer to the cutting edge for 40% greater cutting and gripping power than other pliers designs. The durable, molded insulation meets or exceeds IEC 60900 and ASTM F1505 standards for insulated tools.
Features
- Individually tested to meet or exceed ASTM F1505-10, IEC 60900: 2004, CAN/ULC-60900-09, NFPA 70E, 2012 ed., CSA Z462 for insulated tool
- Two layers of insulation provide protection against electric shock
- Quickly installs and removes spring-tension hose clamps
- High-leverage design has 35-percent more cutting power and grips with either side or end of jaws for work in confined areas
- Forged in the USA with custom, US-made tool steel for maximum durability
- Precision machined pipe-grip for greater gripping power
- Flame retardant, impact-resistant, bright orange outer coating
- Integral guards help prevent hand contact with conductive parts
- Crimping die behind hinge for superior leverage crimping non-insulated connectors, lugs and terminals
- Induction hardened cutting knives for long life
- Clearly marked with the official 1000-volt rating symbol
- Integral Guards Help Prevent Hand Contact With Conductive Parts
Documentation & Downloads
Specifications
Key Specifications
- Joint Type
- Hot-Riveted
- Handle Finish
- 2-Layer Insulation
- Handle Color
- Orange
- Material
- Induction Hardened Steel
- Nose Type
- Universal
- Jaw Length (cm)
- 4.5
- Knife Length (Inch)
- 0.711
- Weight (g)
- 454
- Jaw Thickness (cm)
- 1.4
- Jaw Width (cm)
- 2.6
- Jaw Width (Inch)
- 1.02
- Overall Length (Inch)
- 8.76
- Height
- 0.5000 in
- Depth
- 8.8750 in
TypeHigh-Leverage Pliers
InsulatedYes
ApplicationCuts ACSR, Screws, Nails and Most Hardened Wires
Cut StyleSide-Cutting
StandardsIEC 60900 and ASTM F1505
Handle Length (cm)12.5
Handle Length (Inch)4.93
Weight (oz)16
Jaw Length (Inch)1.78
Knife Length (cm)1.8
Jaw Thickness (Inch)0.55
Overall Length (cm)22.3
Width1.0310 in
Weight1.0000 lbs
