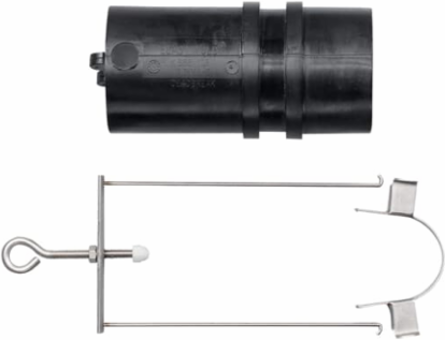

Thomas & Betts K655YDR INSULATING RECEPT W/BAIL
- MPN: K655YDR
- UPC: 783786648092
- PPN: T-B-K655YDR
- UNSPSC: 26121630
CAD
$978.35
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
600 Amp, 15-25kV, 600 Series Deadbreak Insulated Cap with Bail
Specifications
Additional Information
| Application | K655YDR insulated cap is designed to insulate, shield, and water seal 15/25kV, 600 Amp bus bar end interfaces. Units come standard with a bail for assembly and easy installation. |
|---|---|
| Effective Date | 19980108 |
| Product Name | electrical connector,>1000v" |
| Size | 4.19 inch (106.4 mm) Diameter. 7.87 inch (199.9 mm) Length |
| Standards | ANSI/IEEE Standard 386 |
| Brand / Label | Elastimold |
|---|---|
| Material | EPDM Rubber |
| Product Type | Insulated Cap |
| Special Functions | Fully rated 15/25kV, 600 Amp Deadbreak Insulating Cap. Fully shielded, fully submersible molded rubber housing. 100 percent peroxide-cured construction includes insulation and conductive EPDM materials. Can be easily connected or disconnected using standard hand tools and equipment in a de-energized state. Optional accessories allow visible external separation, by-pass, isolation, dead-ending, grounding, and testing as well as adding taps, surge arrestors, and circuit protection. |
Classifications
| WEEE Category | Product Not in WEEE Scope |
|---|
| IDEA Granular Category Code (IGCC) | 1779 >> Cable accessories |
|---|
Ordering
| Country of Origin | United States (US) |
|---|
| Selling Unit of Measure | each |
|---|
