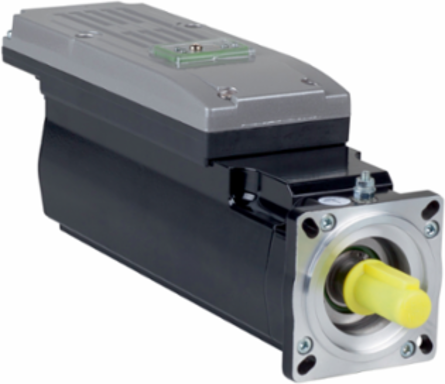

Schneider Electric ILM0702P02F0000 Integrated Servo Motor 1.7 Nm 6000 RPM 252 mm IP54

This product is part of the PacDrive 3 range, an offer of integrated servo motors for machines from 0.31kW to 1.91kW. The 6-pole integrated servo motor features 2 stacks with a maximum mechanical speed of 6000RPM, a continuous rated stall torque 1.7Nm and smooth shaft. It is an equipped with a multi-turn SinCos Hiperface® absolute encoder (128 periods per revolution) with holding brake. It is an integrated servo motor with a supply voltage of 250V to 700V, a continuous stall current of 2.5A and a maximum continuous power of 0.72kW. The shaft dimensions are 11mm (diameter) x 23mm (length). It is an IP54 rated product. The length of this product is 252mm and the centering collar dimensions are 2.5mm (depth) x 60mm (diameter) with 82mm mounting hole. It weighs 3.7kg. It is suitable for use in general machine control, packaging machine automation, material handling applications. It supports international standard 70mm flange mount with a natural convection cooling system. Lexium 62 ILM integrated servo modules can be controlled with all PacDrive LMC Eco and Pro/Pro 2 series motion controllers via SERCOS communication. Multiaxis integrated servo drives from 0.31kW to 1.91kW for automation solutions based on PacDrive 3.
