Klein Tools 60156 Intrinsically Safe LED Headlamp, 216 Lumens, Waterproof, Impact Resistant
- MPN: 60156
- UPC: 092644601569
- PPN: KLT-60156
- UNSPSC: 39111610
CAD
$96.92
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description

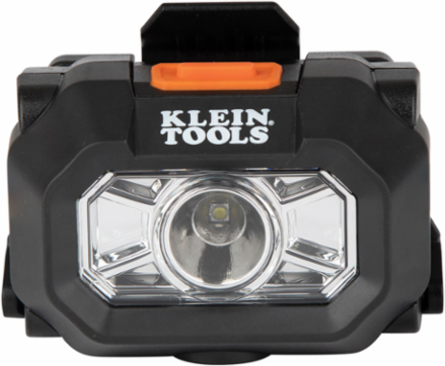

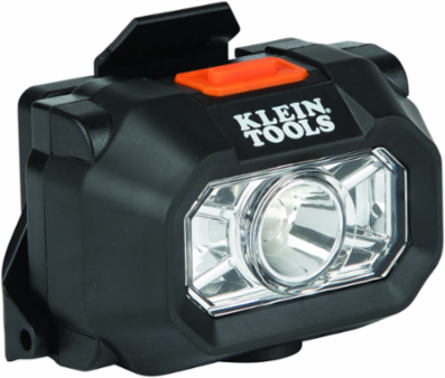

This Intrinsically Safe Class I, II, and III / Division 1 Spot Headlamp is designed for hazardous locations, where explosion risk due to fine dust or fumes is high. This headlamp is designed to deliver an optimal combination of lightweight, IP rated waterproof and dust proof rugged construction. Powered by 3 x AAA batteries, this intrinsically safe LED headlamp mounts directly on front or back accessory mounts found exclusively on Klein® Hard Hats and Safety Helmets; no strap needed! Please consult your safety supervisor before using this product.

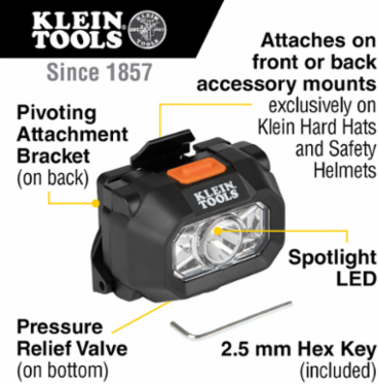

Features
- LED Headlamp Standards tested: UL913 7th edition (US and Canada), CSA 22.2 No. 157-92, Reaffirmed 2012, CLASS I, DIV 1 and 2, GRP ABCD; CLASS II, DIV 1 and 2, GRP EFG; CLASS III; TEMP CODE: T4
- Intrinsically safe LED headlamp attaches directly to Klein Tools Hard Hats and Safety Helmets equipped with Klein Tools accessory mount
- Mode / Lumens / Runtime: 216 lumens on high for 5 hours; 75 lumens on low for 12 hours
- Powered by 3 x AAA batteries (included)
- IP67 rated: waterproof and dust proof
- Impact resistant: drop-test rated up to 6.6 feet (2m)

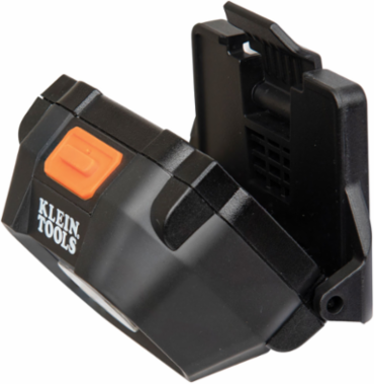

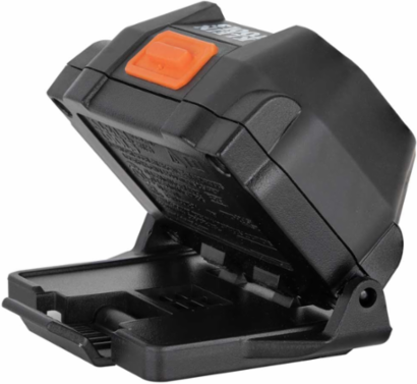

- Bracket tilt angle up to 70 degrees on hard hats (max 90 degrees)
- Pressure relief valve (on bottom)
- Large power / mode button

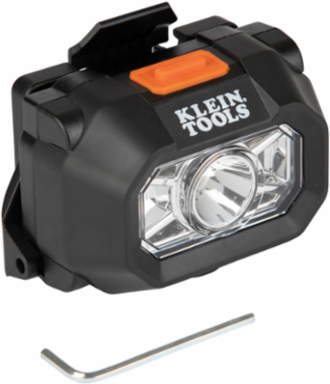

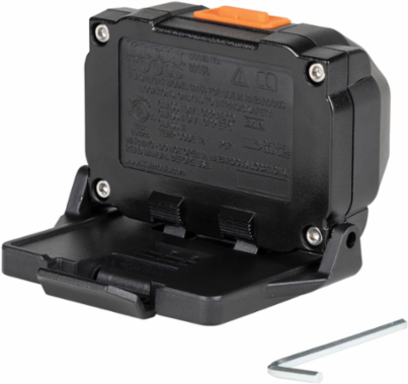

- Includes 1-inch (2.5 mm) Hex Key for covered battery compartment
- Intrinsically Safe Design
Documentation & Downloads
Specifications
Key Specifications
- Temperature Range
- 32° to 104°F (0° to 40°C)
- Lumens
- High - 216; Low - 75
- Drop Protection
- 6.6' (2 m)
- Standard
- CLASS I DIV 1 and 2 GRP ABCD: CLASS II DIV 1 and 2 GRP EFG; CLASS III; TEMPERATURE CODE T4
- Type
- Headlamp
- Included
- Headlamp; Hex Key, Batteries
- Overall Height (Inch)
- 2.44
- Overall Height (cm)
- 6.2
- Overall Length (cm)
- 4.8
- Weight (oz)
- 3.68
- Width
- 1.8980 in
- Weight
- 0.2300 lbs
Batteries3 x AAA
Bulb TypeLED
Battery LifeHigh - 5 hr; Low - 12 hr
MaterialPC/TPU
ApplicationDesigned for Hazardous Environments
Weight (g)104
Overall Width (cm)8.4
Overall Width (Inch)3.31
Overall Length (Inch)1.9
Height1.4270 in
Depth3.3090 in
