Leviton 8300-IGW 20 Amp Isolated Ground Duplex Receptacle, Hospital Grade, 125 Volt, NEMA 5-20R
- MPN: 8300-IGW
- UPC: 078477057360
- PPN: LEV-8300-IGW
CAD
$53.34
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description

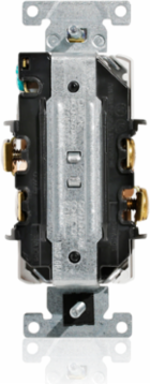

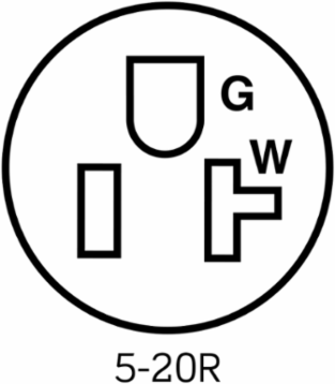

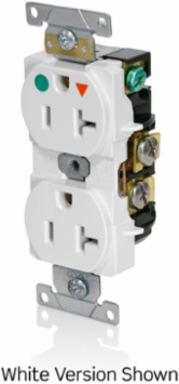

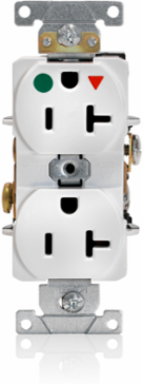

Isolated Ground Duplex Receptacle Outlet, Heavy-Duty Hospital Grade, Smooth Face, 20 Amp, 125 Volt, Back or Side Wire, NEMA 5-20R, 2-Pole, 3-Wire, Self-Grounding - White
Features
- All Leviton Hospital Grade Receptacles undergo the most stringent UL testing to assure continuous, safe operation in any application requiring high-abuse tolerance, including health care facilities, manufacturing plants and schools.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Mexico
RoHS CompliantTrue
Standards and Certifications
- ANSI
- C-73
- CSA C22.2 No. 42
- File 152105
- NEMA
- WD-6
- RoHS
- RoHS Compliant
- UL498HG
- File E13399
Applicable StandardsUL 498, Fed Spec W-C-569, CSA 22.2 No. 42
Certification/ListingcULus, NOM-ANCE
NOM057
UL Fed Spec WC-596File E13399
Warranty10-Year Limited
Material Specifications
- At Rated Voltage
- 1 HP
- Clamp Nuts
- 0.030" Brass
- Face Material
- PBT Polyester Blend
- Ground Contacts
- 0030" Brass
- Line Contacts
- 0.030" Phosopher Bronze
- Shutter Mechanism
- Acetal
- Terminal Clamp
- Brass
Body MaterialPBT Polyester Blend
ColorWhite
Ground ClipsBrass
Grounding Screw#8 Hex Head, Triple-Drive Bass
Mounting ScrewsTriple-Drive Plated Steel
Strap MaterialSteel (Galvanized G60)
Terminal Screws#8 Triple-Drive Brass
Mechanical Specifications
- Product ID
- Ratings are permanently marked on device
- Terminal Accom.
- 14-10 AWG
- Termination
- Back or Side Wire
Screw Terminal Torque14-18 in-lbs
Terminal IDBrass-Hot, Green-Ground, Silver-Neutral
Wire TypeStranded or Solid
Product Features
- Device Type
- Duplex Receptacle Outlet
- Function
- Isolated Ground
Feature 4Smooth Face
GradeHeavy-Duty Hospital Grade
Environmental Specifications
- Body Material
- PBT Polyester Blend
- Color
- White
- Flammability
- Rated V-0 per UL 94
- Ground Contacts
- 0030" Brass
- Line Contacts
- 0.030" Phosopher Bronze
- Operating Temperature
- -40°C to 60°C
- Strap Material
- Steel (Galvanized G60)
Clamp Nuts0.030" Brass
Face MaterialPBT Polyester Blend
Ground ClipsBrass
Grounding Screw#8 Hex Head, Triple-Drive Bass
Mounting ScrewsTriple-Drive Plated Steel
Shutter MechanismAcetal
Terminal Screws#8 Triple-Drive Brass
Electrical Specifications
- Amperage
- 20 A
- Flammability
- Rated V-0 per UL 94
- Operating Temperature
- -40°C to 60°C
- Temperature Rise
- Max 30C temperature rise at full rated current
- Wire
- 3
Dielectric VoltageWithstands 3000V min
GroundingSelf-Grounding
Pole2
Voltage125 VAC
AC Horsepower Ratings
- Amperage
- 20 A
- Current Limiting
- Full Rated Current
- Grounding
- Self-Grounding
- Temperature Rise
- Max 30C temperature rise at full rated current
- Wire
- 3
At Rated Voltage1 HP
Dielectric VoltageWithstands 3000V min
Pole2
Voltage125 VAC
