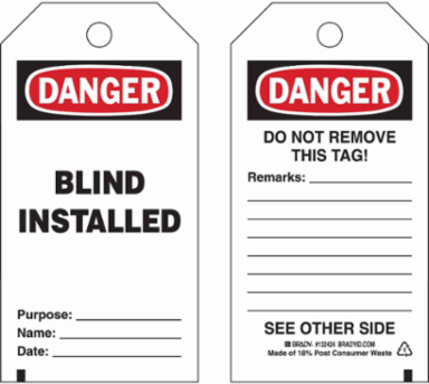

Brady 132424 Isolation Blind Tags, BLIND INSTALLED PURPOSE: NAME: DATE:
Brady 132424 Isolation Blind Tags, BLIND INSTALLED PURPOSE: NAME: DATE:
- MPN: 132424
- UPC: 754473845100
- PPN: BRD-132424
- UNSPSC: 55121511
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$83.10/ EA
Description
These tags are made from 10-mil polyester (B-851) and have excellent outdoor weatherability.
Features
- B-851 Rigid Economy Polyester exceeds OSHA's 50 lb pull force requirement for Lockout Tagout
- Textured write-on surface allows for authorized signatures, dates and other special instructions
- Includes 3/8 in. diameter hole with brass eyelet
- Withstands moisture, grease and dirt
Specifications
Specifications
- Brand Name
- Brady®
- Enables Industry Compliance
- ANSI Z53.1-1967; ANSI Z535-2006; OSHA 1910.145
- Image or Text
- Text Only
- Language
- English
- Perforated
- Not Perforated
- Reverse Header
- DANGER
- Shape
- Rectangle
- Write-On
- Yes
- Brady Material Number
- B-851
- Indoor or Outdoor Use
- Outdoor Use
- Material
- Heavy Duty Polyester
- Resistance Properties
- Abrasion-Resistant; Chemical-Resistant
- Dimensions
- 5.75 in H x 3 in W
- Dimensions 2
- 5.75 in H x 3 in W
- Height (mm/cm/m)
- 146.1 mm
- Hole Inside Diameter (mm/cm/m)
- 9.5 mm
- Maximum Service Temperature °F
- 212 °F
- Minimum Service Temperature °F
- -40 °F
- Thickness (in/ft/yd)
- 0.0098 in
- Width (in/ft/yd)
- 3 in
ColorBlack/Red on White
HeaderDANGER
Includes(25) Nylon Fasteners
Number of Printed Sides2
Primary Noun, Basic FunctionTag
Reverse LegendDO NOT REMOVE THIS TAG REMARKS:
Text LegendBLIND INSTALLED PURPOSE: NAME: DATE:
Write-On AreaYes
Grommet MaterialMetal
LaminatedNot Laminated
Material PropertiesRigid
SAP B-NumberB-851
Dimensions (Metric)146.1 mm H
Height (in/ft/yd)5.75 in
Hole Inside Diameter (in/ft/yd)0.375 in
Maximum Service Temperature °C100 °C
Minimum Service Temperature °C-40 °C
Sign Size-General5.75 in x 3 in
Thickness (mm/cm/m)0.249 mm
Width (mm/cm/m)76.2 mm
Regulatory Information
- Contains CA PROP 65 Substance
- No - Does not contain
- DOT Regulated Product
- No = not regulated by DOT
- EU RoHS Compliant
- No
Contains CA PROP 65 SubstanceNo
EU RoHS ComplianceNot Applicable
SDS Safety Data Sheet requiredNo = MSDS/SDS is not required
