Jonard Tools 30-B-50-010 Wire 30Awg Blue Kynar 1" 50 Pcs/Pkg
Jonard Tools 30-B-50-010 Wire 30Awg Blue Kynar 1" 50 Pcs/Pkg
Jonard Tools 30-B-50-010 Wire 30Awg Blue Kynar 1" 50 Pcs/Pkg
Jonard Tools

Jonard Tools 30-B-50-010 Jonard Tools 30-B-50-010 Wire 30Awg Blue Kynar 1" 50 Pcs/Pkg

  • MPN: 30-B-50-010
  • UPC: 811490011014
  • PPN: JTL-30-B-50-010

CAD

$21.43

/ EA

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Company Stock:

0

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Description

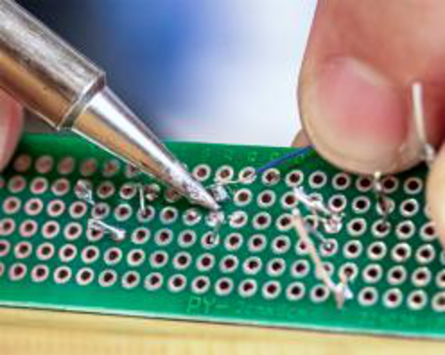

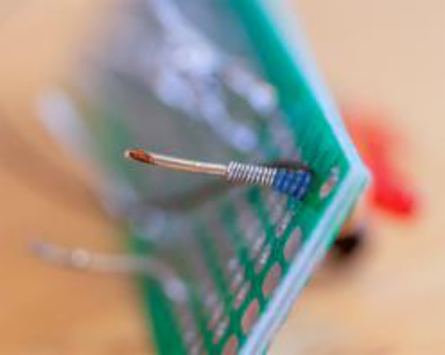

Typically used where flexibility, strength, and low weight is required, Kynar® wire is ideally suited in wire wrap, power supply, medical, and aerospace applications. It is also commonly used for circuit board prototyping because of its lighter weight and smaller overall diameter. Additionally, Kynar® insulation provides excellent mechanical properties over a large temperature range and is resistant to an extensive range of chemicals including most inorganic and organic acids, bases, alcohols, halogenated solvents, and aliphatic & aromatic hydrocarbons. These properties make Kynar® wire an excellent choice when working in even the harshest environmental applications. This pre-cut pre-stripped wire also features the following: Includes (50) pieces of pre-cut pre-stripped wire

Features

  • OHFC (oxygen-free high conductivity) silver-plated copper conductor provides exceptional electrical conductivity and flexibility
  • Kynar® insulation provides high temperature resistance (up to 105°C) and excellent abrasion resistance
  • Meets or exceeds UL 1423 standards
  • This wire is insulated in the middle and stripped on both ends
  • Insulation length is 1" and the stripped length on each end is 1"

Documentation & Downloads

Specifications

Key Specifications

Country of Origin
United States
Length
0.07 Inch
Insulation Color
Blue
Wire Gauge
30 AWG (0.25 mm)
Weight
0.026 Lbs.
Conductor Material
Silver Plated Copper
Product Material
Silver Plated Copper
Insulation TypeKynar®
Width2 Inch
Height7 Inch
Insulation Length1" (25.4 mm)
Each End Strip Length1" (25.4 mm)
StandardsUL 1423
Product Main ColorBlue
