Jonard Tools 30-R-50-020 Jonard Tools 30-R-50-020 Wire 30Awg Red Kynar 2" 50 Pcs/Pkg
Jonard Tools 30-R-50-020 Jonard Tools 30-R-50-020 Wire 30Awg Red Kynar 2" 50 Pcs/Pkg
- MPN: 30-R-50-020
- UPC: 811490011052
- PPN: JTL-30-R-50-020
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$21.43/ EA
Description

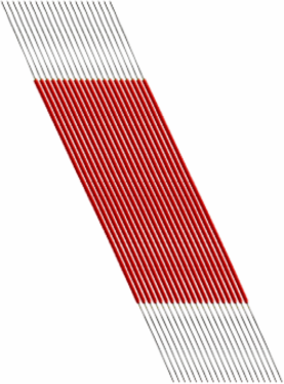

Typically used where flexibility, strength, and low weight is required, Kynar® wire is ideally suited in wire wrap, power supply, medical, and aerospace applications. It is also commonly used for circuit board prototyping because of its lighter weight and smaller overall diameter. Additionally, Kynar® insulation provides excellent mechanical properties over a large temperature range and is resistant to an extensive range of chemicals including most inorganic and organic acids, bases, alcohols, halogenated solvents, and aliphatic & aromatic hydrocarbons. These properties make Kynar® wire an excellent choice when working in even the harshest environmental applications. This pre-cut pre-stripped wire also features the following: Includes (50) pieces of pre-cut pre-stripped wire
Features
- OHFC (oxygen-free high conductivity) silver-plated copper conductor provides exceptional electrical conductivity and flexibility
- Kynar® insulation provides high temperature resistance (up to 105°C) and excellent abrasion resistance
- Meets or exceeds UL 1423 standards
- This wire is insulated in the middle and stripped on both ends
- Insulation length is 2" and the stripped length on each end is 1"
Specifications
Specifications
- Country of Origin
- United States
- Length
- 0.07 Inch
- Insulation Color
- Red
- Height
- 9 Inch
- Weight
- 0.028 Lbs.
- Conductor Material
- Silver Plated Copper
- Product Material
- Silver Plated Copper
Insulation TypeKynar®
Width2 Inch
Wire Gauge30 AWG (0.25 mm)
Insulation Length2" (51 mm)
Each Wire Strip Length1" (25.4 mm)
StandardsUL 1423
Product Main ColorRed
