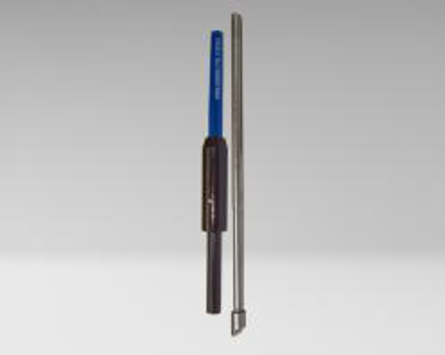

Jonard Tools DFB224 Jonard Tools DFB224 Wrap/Unwrap Bit & Sleeve Set, 22-24 Awg
- MPN: DFB224
- UPC: 811490013902
- PPN: JTL-DFB224
CAD
$252.05
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
The kit includes: P-DF224 Replacement Sleeve Assembly (DFB224, 22-24 AWG)
Features
- Precision machined for high-quality wire wrapping in the clockwise direction and unwrapping in the counterclockwise direction
- Easily switch between wrap and unwrap mode by retracting or extending the sleeve and flipping the switch on a PTX Wire Wrapping/Unwrapping Tool
- Maximizes the efficiency of wire wrapping and unwrapping 24-26 AWG wires, while eliminating the need to purchase or carry other extra tools for unwrapping
- Retractable wire wrapping sleeve is coated with a durable 1000V dielectric material to prevent pin-to-pin shorting
- KB-DF224 Wrap/Unwrap Bit (22-24 AWG)
Documentation & Downloads
Specifications
Key Specifications
| Country of Origin | China |
|---|---|
| Wrap Function | Wrap, Unwrap |
| Wire Gauge | 22-24 AWG (0.65-0.50 mm) |
| Minimum Terminal Diagonal | 0.054" (1.37 mm) |
| Maximum Terminal Diagonal | 0.073" (1.85 mm) |
| Terminal Hole Diameter | 0.075" (1.9 mm) |
| Wrap Post Size | 0.045" (1.14 mm) |
| Length | 0.9 Inch |
|---|---|
| Width | 0.9 Inch |
| Height | 6.25 Inch |
| Weight | 0.13 Lbs. |
| Terminal Hole Depth | 0.50" (12.70 mm) |
| Effective Radius | 0.111" (2.82 mm) |
