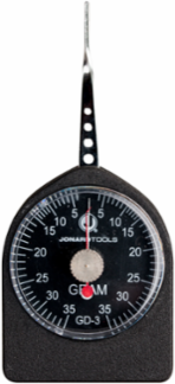

Jonard Tools GD-3 Jonard Tools GD-3 Gauge, Dynamometer 4-35 Gr.
- MPN: GD-3
- UPC: 811490010017
- PPN: JTL-GD-3
CAD
$408.62
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
The Jonard Tools Dial Force Gauges (also referred to as Dynamometer Gauges or Tension Gauges) are all ergonomically designed and have become the industry standard for measuring force. This dynamometer force gauge features the following: Accuracy: 1 gram, graduation: 1 gram, range: 5-35 grams, maximum capacity: 35 grams
Features
- Measurements are very simple to make, just place point of gauge arm perpendicular to the force being measured
- Reading can be taken in both directions - clockwise and counterclockwise
- Measuring springs are made of hard tempered annealed beryllium copper for durable use
- All gauges are equipped with a maximum reading pointer and the gauge has a flat tip with a dial diameter of 1 1/2 inches
- Gauges offer extreme precision and high durability
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- China
- Length
- 4 Inch
- Width
- 2 Inch
- Height
- 1.5 Inch
- Weight
- 0.35 Lbs.
- Graduation
- 1.00 g
- Max Capacity
- 35 g
Lever Tip StyleFlat
Tip Width0.104" (2.65 mm)
Tip Thickness0.0335" (0.85 mm)
Dial Diameter1 1/2" (3.81 cm)
Accuracy+- 1 g
Range5-35 g
