Jonard Tools

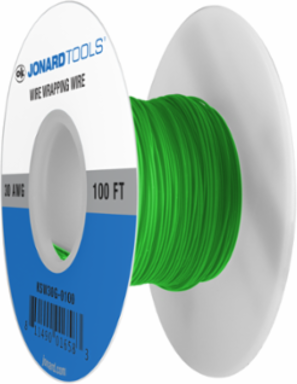

Jonard Tools KSW30G-0100 Jonard Tools KSW30G-0100 Wire 30Awg Green 100 FT CSW

Jonard Tools KSW30G-0100 Wire 30Awg Green 100 FT CSW
Jonard Tools KSW30G-0100 Wire 30Awg Green 100 FT CSW
Jonard Tools KSW30G-0100 Wire 30Awg Green 100 FT CSW
  • MPN: KSW30G-0100
  • UPC: 811490016583
  • PPN: JTL-KSW30G-0100

Spec sheet

Loading compare button...

In Stock

Company Stock:

00

Lead times may vary. For an accurate estimate please contact us.

Looking to buy a large quantity?

To view product inventory

CAD$48.08/ EA

Description

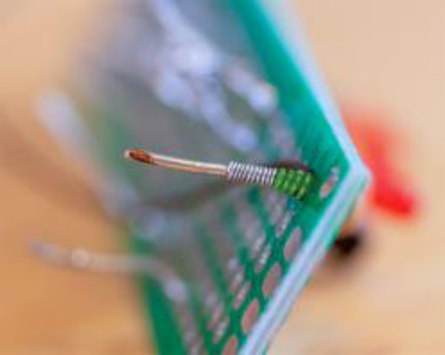

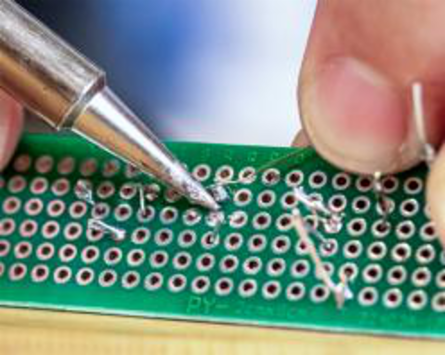

Typically used where flexibility, strength, and low weight is required, Kynar® wire is ideally suited in wire wrap, power supply, medical, and aerospace applications. It is also commonly used for circuit board prototyping because of its lighter weight and smaller overall diameter. Additionally, Kynar insulation provides excellent mechanical properties over a large temperature range and is resistant to an extensive range of chemicals including most inorganic and organic acids, bases, alcohols, halogenated solvents, and aliphatic & aromatic hydrocarbons. These properties make Kynar® wire an excellent choice when working in even the harshest environmental applications. This wire also features the following:

Features

  • Low strip-force Kynar® insulation is further processed to provide a low strip force for use with CSW bits and sleeves (RoHS Compliant)
  • OHFC (oxygen-free high conductivity) silver-plated copper conductor provides exceptional electrical conductivity and flexibility
  • Kynar® insulation provides high temperature resistance (up to 105°C) and excellent abrasion resistance
  • Meets or exceeds UL 1423 standards

Specifications

Specifications

Country of Origin
United States
Length
1.25 Inch
Width
2.8 Inch
Height
2.8 Inch
Insulation Thickness
0.005" (0.127 mm)
Material
Silver Plated Copper Conductor
Voltage
Not Rated
Product Main Color
Green
ColorGreen
Wire Gauge30 AWG (0.25 mm)
Insulation TypeLow Strip Force Kynar®
Weight0.083 Lbs.
Overall Diameter0.020" (0.50 mm)
StandardsUL 1423
Product MaterialSilver Plated Copper Conductor
