Jonard Tools WB26SM Jonard Tools WB26SM Wire Wrapping Bit, 26 Awg
- MPN: WB26SM
- UPC: 811490013056
- PPN: JTL-WB26SM
CAD
$110.76
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
Compatible Wrap Sleeve Part #: P26LN
Features
- Provides one and a half turns of insulation per wire wrap, increasing the mechanical stability the wrap
- Recommended for use on 0.025" (0.63 mm) square terminals with 0.100" (2.54 mm) center-to-center of the pinsCompatible Wrap Sleeve Part #: P26LN
Documentation & Downloads
Specifications
Key Specifications
| Country of Origin | China |
|---|---|
| Length | 0.3 Inch |
| Wrap Function | Wrap |
| Height | 6.5 Inch |
| Weight | 0.05 Lbs. |
| Minimum Terminal Diagonal | 0.023" (0.58 mm) |
| Terminal Hole Depth | 0.75" (19.05 mm) |
| Terminal Hole Diameter | 0.040" (1.02 mm) |
| Sleeve Part No. | P26LN (sold separately) |
|---|---|
| Width | 2.13 Inch |
| Wrap Type | Modified |
| Wire Gauge | 26 AWG (0.40 mm) |
| Maximum Insulation Diameter | 0.031" (0.79 mm) |
| Maximum Terminal Diagonal | 0.038" (0.96 mm) |
| Effective Radius | 0.075" (1.9 mm) |
| Wrap Post Size | 0.025" (0.63 mm) |

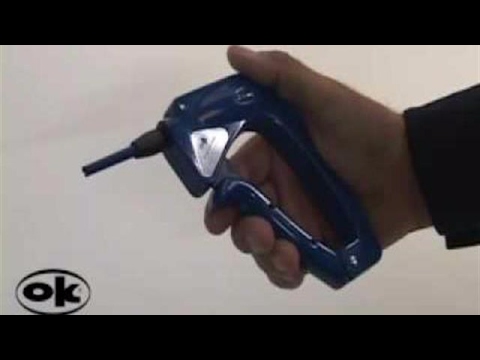

Loading video…
