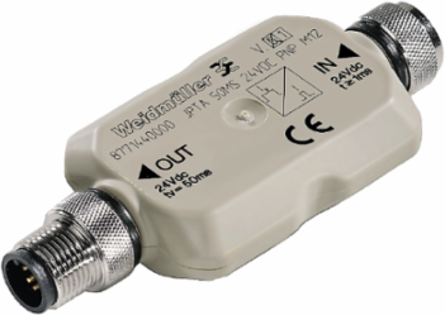

Weidmuller 8836630000 JPTA100MS 24VDC PNP M12
- MPN: 8836630000
- PPN: WDM-8836630000
CAD
$126.58
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet

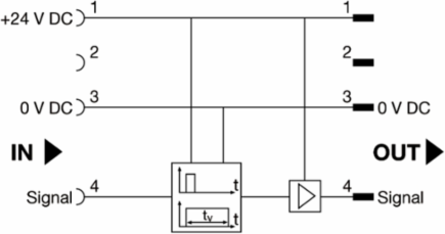

Description
JACKPAC, Pulse stretcher, Number of contacts: 1, NO contact, Rated control voltage: 18...24...30 V DC, Continuous current: 0.4 A, M12 plug/socket, A-coded
Documentation & Downloads
Specifications
General Data
| Test button | No |
|---|
| Mechanical switch position indicator | No |
|---|
Approvals
| Approvals | CE, CULUS, EAC |
|---|---|
| UL File Number Search | E141197 |
| ROHS | Conform |
|---|
Dimensions And Weights
| Width | 36 mm |
|---|---|
| Height | 14.4 mm |
| Depth | 83 mm |
| Net weight | 55 g |
| Width (inches) | 1.417 inch |
|---|---|
| Height (inches) | 0.567 inch |
| Depth (inches) | 3.268 inch |
Connection Data
| Wire connection method | M12 plug/socket, A-coded |
|---|
Contact Data
| Contact type | 1 NO contact (Transistor) |
|---|
Input
| Rated control voltage | 24 V DC ± 25 % |
|---|---|
| Min. pulse duration | 1 ms |
| Rated current DC | 3,5...7,0...10,0 mA |
|---|
Classifications
| ETIM 6.0 | EC001439 |
|---|---|
| eClass 9.0 | 27-37-16-05 |
| eClass 10.0 | 27-37-16-05 |
| ETIM 7.0 | EC001439 |
|---|---|
| eClass 9.1 | 27-37-16-05 |
| UNSPSC | 30-21-19-17 |
Output
| Max. switching voltage, DC | 30 V |
|---|---|
| Switch-off delay | 100 ms |
| Continuous current | 0.4 A |
|---|---|
| Max. switching current | 400 mA |
Environmental Product Compliance
| REACH SVHC | Lead 7439-92-1 |
|---|
Insulation Coordination
| Rated voltage | 32 V |
|---|---|
| Pollution severity | 2 |
| Surge voltage category | I |
|---|---|
| Impulse withstand voltage | 330 V |
Temperatures
| Operating temperature, max. | 60 °C |
|---|---|
| Storage temperature, max. | 85 °C |
| Operating temperature | 0 °C...60 °C |
| Operating temperature, min. | 0 °C |
|---|---|
| Storage temperature, min. | -20 °C |
| Storage temperature | -20 °C...85 °C |
Ratings Iecex/Atex/Cul
| Certificate no. (cULus) | E141197 |
|---|
Further Details Of Approvals / Standards
| Certificate no. (cULus) | E141197 |
|---|
