Thomas & Betts 775J4-U JUNCT, 4PT, 900A DB, 35KV W/ADJ BKT
- MPN: 775J4-U
- UPC: 783786030491
- PPN: T-B-775J4-U
- UNSPSC: 26121630
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description

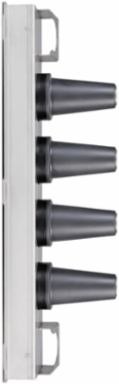

900 Amp, 35kV, Deadbreak, 4-Point Junction, Rubber Junction with Stainless Steel Mounting Plate, Back Plane and Adjustable Mounting Bracket.
Specifications
Additional Information
| Application | Designed for subsurface, vault or padmount applications and can be used for sectionalizing, looping, tapping, and equipment bypass. |
|---|---|
| Connection Type | Push-In |
| Material | EPDM Rubber Housing, Stainless Steel Mounting Bracket |
| Product Type | Deadbreak 4-Way Junction |
| Special Functions | Rubber Junction with Stainless Steel Mounting Plate, Back Plane and Adjustable Mounting Bracket. |
| Temperature Range | -40 to +65 °C |
| Brand / Label | Elastimold |
|---|---|
| Effective Date | 20100922 |
| Product Name | ELECTRICAL CONNECTOR,>1000V |
| Size | 23 inch Long, 6.75 inch Wide, 6.85 inch High |
| Standards | ANSI/IEEE Standard 386. |
Classifications
| WEEE Category | Product Not in WEEE Scope |
|---|
| IDEA Granular Category Code (IGCC) | 1779 >> Cable accessories |
|---|
Ordering
| Country of Origin | United States (US) |
|---|
| Selling Unit of Measure | each |
|---|
