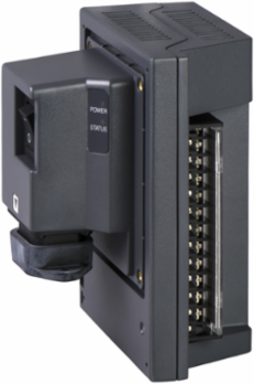

Schneider Electric XBTZGJBOX Junction Box for XBTGH Hand-Held Terminal, 24V DC, IP20/IP65 Protection
- MPN: XBTZGJBOX
- PPN: SCH-XBTZGJBOX
CAD
$793.72
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
This Magelis XBTZ is a junction box for XBTGH touchscreen advanced hand-held panel. It enables 24V dc power supply to XBTGH terminal and connection of various safety inputs/outputs. It also enables connection on multiprotocol serial link (9-way SUB-D) or Ethernet TCP/IP (RJ45). It can be mounted on 35 mm symmetrical DIN rail.
Documentation & Downloads
Specifications
Key Specifications
| Country of Origin | Brazil, China, France, Japan, Sweden, Singapore, United States |
|---|
Important Information Attributes
| Persona Type Ids | EU, OM, OM8, PB, SC, SI |
|---|---|
| Market Segmentation Id | COMMERCIAL, INDUSTRIAL |
| Electrical Connection | 1 connector 24-pin connector hand-held panel1 connector RJ45 Ethernet TCP/IP, 1 male connector SUB-D 9 RS232C/RS422/RS485 <= 115.2 kbits/s COM1 serial linkscrew terminal block 24 inputs/outputs |
| Local Data Status | Publishable |
| Return Indicator | N |
| Stock Policy | 1 |
| Traceability | No |
| Weee Scope | In |
| Scope Perimeter | At least in Europe |
| Reach Full Compliance Status | Reference contains Substances of Very High Concern above the threshold |
| Reach Compliance Directive | Reference contains Substances of Very High Concern above the threshold |
| Rohs Eur Status | Compliant By Exemption |
| Rohs Eur Full Compliance Status | Compliant By Exemption |
| China Rohs Label | 4 |
| Without Single Use Plastic | No |
| Tier Id | 2 |
| Function Option Id | STANDARD |
| Product Kit Identifier | N |
| Fixing Mode | by 4 M4 screws 1.5 to 10 mm thick panelclip-on 35 mm symmetrical DIN rail |
| Inrush Current | 30 A |
| Port Ethernet | 10BASE-T/100BASE-TX |
| Product Availability | Non-Stock - Not normally stocked in distribution facility |
| Product Specific Application | for XBTGH advanced hand-held panel |
| Resistance To Electromagnetic Fields | 10 V/m IEC 61000-4-3 |
| Resistance To Fast Transients | 2 kV IEC 61000-4-4 level 3 |
| Shock Resistance | 15 gn 11 ms IEC 60068-2-27 |
| Sustainable Packaging | No |
| Weee Label | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins. |
| F-gas Free | Only air and vacuum used for insulation / breaking, no F-gas including SF6 |
| Halogen-free Status | Product contains halogen above thresholds |
| Package Weight(Lbs) | 1.184 kg |
| Take-back | No |
| Customs Code | 8538908180 |
| Persona Type Names | End User, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, Electrician, System Integrator |
|---|---|
| Market Segmentation | Commercial, Industrial |
| Certificate Agency | cULus, C-tick |
| Local Publishable Date | 2026-01-12 |
| Stocking Flag | Y |
| Serviceability | No |
| Weee Applicability | Finished product |
| Weee Product Category | 5 |
| Eoli Availability Display | No need of specific recycling operations |
| Reach Full Compliance Status Id | CONTAINS_SVHC |
| Rohs Eur In Scope | No |
| Rohs Eur Conformity Date | 2514 |
| China Rohs In Scope | Yes |
| With Recycled Cardboard | Yes |
| Product Contributes To Saved And Avoided Emissions | No |
| Tier | 2 |
| Function Option | Standard |
| Enclosure Material | PPT |
| Immunity To Microbreaks | 10 ms |
| Marking | CE |
| Power Consumption In W | 6.3 W |
| Product Or Component Type | junction box |
| Range Of Product | Magelis XBTGH |
| Resistance To Electrostatic Discharge | 6 kV IEC 61000-4-2 level 3 |
| Returnability | No |
| Supply Voltage Limits | 19.2-28.8 V |
| Vibration Resistance | 1 gn 9-150 Hz)3.5 mm 5-9 Hz) |
| [Us] Rated Supply Voltage | 24 V DC |
| F-gas Usage Performance | Only air and vacuum used for insulation / breaking, no F-gas including SF6 |
| Nbr. Of Units In Pkg. | 1 |
| Silicone-free | No |
| Warranty (In Months) | 18 |
Environment Attributes Main
| Ambient Air Temperature For Storage | -20-60 °C, -20-60 °C |
|---|---|
| Take Back | No |
| Recycled Metal Content At Cr Level | 0 % |
| Mercury Free | Yes |
| Ambient Air Temperature For Operation | 0-50 °C |
| Halogen Content Performance | Product contains halogen above thresholds |
| Packaging Made With Recycled Cardboard | Yes |
| Reach Regulation | Reference contains Substances of Very High Concern above the threshold |
| Operating Altitude | <= 6561.68 ft (2000 m), <= 6561.68 ft (2000 m) |
|---|---|
| Halogene Performance | Product contains halogen above thresholds |
| China Rohs Regulation | X |
| Silicon Free | No |
| Eu Rohs Directive | Compliant By Exemption |
| Ip Degree Of Protection | IP20 rear panel)IP65 front panel) |
| Packaging Without Single Use Plastic | No |
| Relative Humidity | 0-90 % without condensation or dripping water |
General Attributes
| Product Or Component Type | junction box |
|---|
| Range Of Product | Magelis XBTGH |
|---|
ETIM
| ETIM 8 | EC002584 |
|---|
| ETIM 9 | EC002584 |
|---|
Contractual Warranty Attributes
| Warranty Period | 18 months |
|---|
| Warranty | 18 months |
|---|
