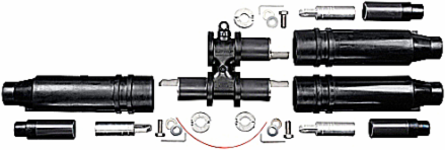

Thomas & Betts K656CY-DP0591166 Deadbreak Separable Wye Joint
- MPN: K656CY-DP0591166
- UPC: 783786281343
- PPN: T-B-K656CY-DP0591166
CAD
$4439.55
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
600 Amp, 15/25KV, Separable Wye Joint Package, 3-Way with Test Point, K0320 - Cable Insulation Diameter 1.090 inch to 1.310 inch. Universal Aluminum Compression Lug. Conductor Size AWG or kcmil, Compressed/Stranded 450 or Compacted/Solid 550. SG3 - Cold Shrinkable Seal with Copper Braid and Constant Force Spring. K0320 - Cable Insulation Diameter 1.090 inch to 1.310 inch. Universal Aluminum Compression Lug. Conductor Size AWG or kcmil, Compressed/Stranded 450 or Compacted/Solid 550. SG3 - Cold Shrinkable Seal with Copper Braid and Constant Force Spring. G0240 - Cable Insulation Diameter 0.760 inch to 0.950 inch. Universal Aluminum Compression Lug. Conductor Size AWG or kcmil, Compressed/Stranded 1/0 or Compacted/Solid 2/0. S - Cold Shrinkable Jacket Seal.
Specifications
Packaging
| Outer Quantity | 1 |
|---|---|
| Weight Uom | 25 lbs. Each |
| Outer Dimensions (inches) | 17x12.5x8.25 |
|---|
North American Specifications (UNSPSC)
| UNSPSC | 39121421 Electrical connector assembly |
|---|---|
| Brand Name | Elastimold |
| Special Features | Fully Shielded, Fully Submersible, 100 Percent Peroxide Cured EPDM Molded Rubber. |
| Standard | ANSI/IEEE Standard 386 |
| Connection | Compression - Crimp |
| Material | Housing - EPDM Rubber |
| Voltage Rating | 15/25kV |
| Insulation | Yes, EPDM Rubber |
| Environmental Conditions | All Weather Conditions |
| IGCC | 4586 Electrical connector assembly |
|---|---|
| Type | Deadbreak Separable Wye Joint |
| Application | Compact Design is suitable for small vaults and manholes. |
| Size | Overall Length 37.27 inches x Width 8.12 inches not counting 1 inch Test Point |
| Conductor Range | Compressed/Stranded 450 or Compacted/Solid 550, Compressed/Stranded 1/0 or Compacted/Solid 2/0 |
| Color | Black |
| Amperage Rating | 600 Amps |
| Temperature Rating | -40 degrees to +65 degrees Celsius |
| Consist Of | (1) 3-Way Bus Bar, (3) Straight Receptacles, (3) SR Size Kits, (2) Lubes of Lubricant and Installation Instructions |
