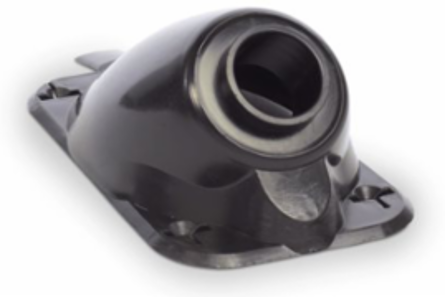

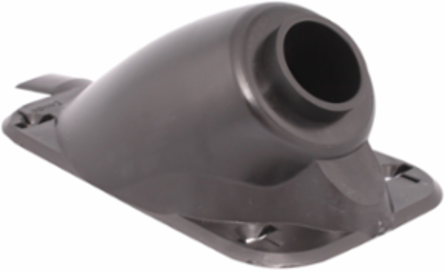

IPEX 089235 KWIKON 1 Inch x 45 Degree PE Angled Stubby with Pullout Tab
- MPN: 089235
- UPC: 622454019560
- PPN: IPX-089235
CAD
$2.52
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
The KWIKON Angled Stubby eliminates the need for drilling holes in the plywood forms to create stub downs. With our unique angled design, the ENT raceway maintains a low profile in the concrete pour allowing all sizes of Cor-line ENT to be used in most slabs. The 45 degree angled design allows Kwikon ENT to maintain a low profile in concrete slab and creates a smooth bending radius for easy pull-through of circuit wiring.
Features
- Pullout tab allows for ease of stubby removal after the concrete pour
- T' slot nail hole permits the head of the nail to pull through when the forms are removed
- Can create a 'stub-down' without drilling a hole in the wood form
- Enlarged inside throat area facilitates easy installation of PVC female adapters as required
Documentation & Downloads
Specifications
Additional
- Angle
- 45°
- Pullout Force
- 175 ft-lb minimum
- Connection Type
- NAIL or SCREW
- Color
- Black
- Country of Origin
- Canada
- Inside Throat
- Enlarged for easy installation of PVC female adapters
- Pullout Tab
- Included for ease of removal after concrete pour
- Fits ENT Size Range
- 1/2 in to 2-1/2 in
Diameter1 in
Weight0.028 kg
MaterialPE
ComplianceCSA C22.2 No. 227.1, NEMA TC-13
Locking TabsSix, located every 60° for 360° contact
Nail Hole Type‘T’ slot for nail head pull-through
Concrete TightYes, without taping
