IPEX 089239 KASTB-35 2"x45D PE ANGLED FORM STUBBY NAIL or SCREW BLACK KWIKON
IPEX 089239 KASTB-35 2"x45D PE ANGLED FORM STUBBY NAIL or SCREW BLACK KWIKON
- MPN: 089239
- UPC: 622454830998
- PPN: IPX-089239
Spec sheet
Loading compare button...
Available to Order
Company Stock:
0
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$8.83/ EA
Description

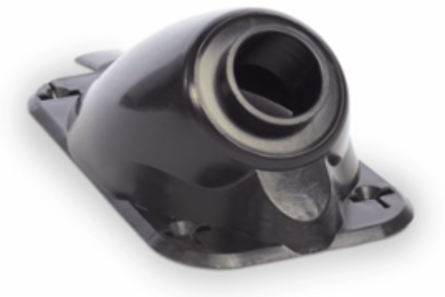

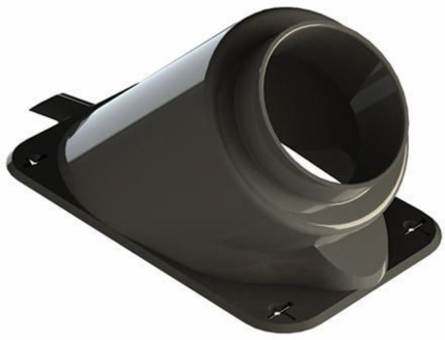

The Kwikon® Angled Stubby eliminates the need for drilling holes in the plywood forms to create stubdowns. With our unique angled design, the ENT raceway maintains a low profile in the concrete pour allowing all sizes of Kwikon ENT to be used in most slabs. The 45° angled design creates a smooth bending radius for easy pull-through of circuit wiring.
Features
- Pullout tab allows for ease of stubby removal after the concrete pour
- T' slot nail hole permits the head of the nail to pull through when the forms are removed
- Can create a 'stub-down' without drilling a hole in the wood form
- Enlarged inside throat area facilitates easy installation of PVC female adapters as required
Specifications
Specifications
- Length
- 7.6 in
- Height
- 3.8 in
- Diameter
- 2"
- Connection Type
- NAIL or SCREW
- Color
- BLACK
- NAFTA
- Yes
Width4.0 in
Weight0.085 kg
Angle45D
MaterialPE
Country of OriginCanada
Base Quantity Metric1.000
