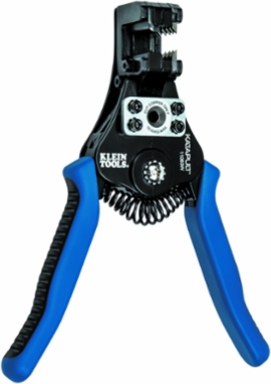

Klein Tools 11063W Katapult Wire Stripper & Cutter for 8-20 AWG Solid, 10-22 AWG Stranded Wire
- MPN: 11063W
- UPC: 092644420016
- PPN: KLT-11063W
- UNSPSC: 27111510
CAD
$52.42
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
Klein Tools' Katapult® Solid and Stranded Wire Stripper / Cutter has a built-in cutting hole to cleanly cut 8-20 AWG solid and 10-22 AWG stranded wire, while the stripping head allows you to easily grip and strip just by squeezing the handle. Made of cast alloy with a heavy-duty Ecoat finish for corrosion resistance and durability.

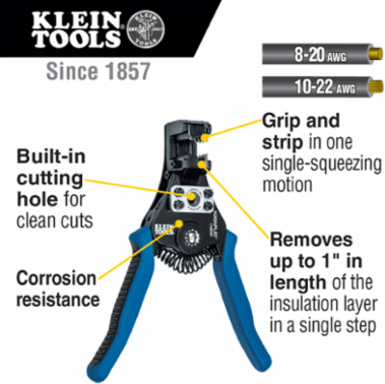

Features
- Wire Stripper and Cutter cuts and strips 8-20 AWG solid and 10-22 AWG stranded wire with ease
- Compound action stripping: grip and strip via single-action squeezing motion

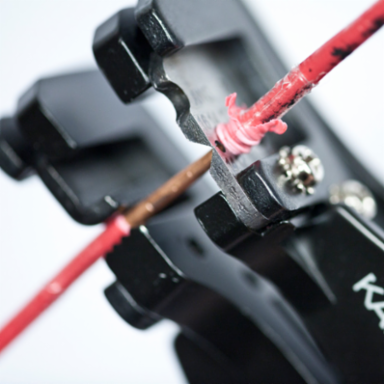

- Precision machined stripping holes easily remove insulation without damaging the wire
- Removes up to 1-Inch (25 mm) in length of the insulation layer (jacket layer) in a single step
- Tension loaded wire-grip gently holds the cable while retaining cable geometry
- Cast alloy chassis with heavy-duty Ecoat finish for corrosion resistance and durability
Documentation & Downloads
Specifications
Key Specifications
- Strips and Cuts
- 8-20 AWG Solid, 10-22 AWG Stranded
- Application
- Wire Stripping and Cutting
- Material
- Cast Alloy Chassis with Heavy-Duty Ecoat Finish
- Weight (oz)
- 12
- Overall Length (cm)
- 16.7
- Width
- 5.2500 in
- Weight
- 0.7500 lbs
Hold-Open SpringYes
Handle ColorBlue/Black
Weight (g)340
Overall Length (Inch)6.594
Height5.2500 in
Depth6.6250 in
