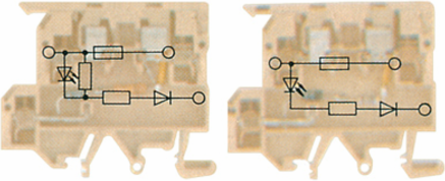

Weidmuller 9802730000 KDKS1LD/24 GFH DDECK FUSE TERM
- MPN: 9802730000
- PPN: WDM-9802730000
CAD
$30.64
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
SAK Series, Fuse terminal, Rated cross-section: 4 mm², Direct mounting
Documentation & Downloads
Specifications
Approvals
- Approvals
- CE, EAC
ROHSConform
Dimensions And Weights
- Width
- 8 mm
- Height
- 62.75 mm
- Depth
- 55.5 mm
- Net weight
- 23.04 g
Width (inches)0.315 inch
Height (inches)2.47 inch
Depth (inches)2.185 inch
Additional Technical Data
- Installation advice
- Direct mounting
Type of mountingSnap-on
Material Data
- Material
- PA 66
UL 94 flammability ratingV-2
Safety Note
- Safety notice
- Safety Information
Classifications
- ETIM 6.0
- EC000899
- eClass 9.0
- 27-14-11-16
- eClass 10.0
- 27-14-11-16
ETIM 7.0EC000899
eClass 9.127-14-11-16
System Specifications
- Version
- Screw connection, Fuse cartridge, with LED, One end without connector
- Number of clamping points per level
- 2
- PE connection
- No
Number of levels2
Levels cross-connected internallyNo
RailTS 35, TS 32
Temperatures
- Storage temperature, max.
- 40 °C
- Storage temperature
- 10 °C...40 °C
- Continuous operating temp., max.
- 100 °C
Storage temperature, min.10 °C
Continuous operating temp., min.-50 °C
Rating Data
- Rated cross-section
- 4 mm²
Power loss in accordance with IEC 60947-7-x1.02 W
Conductors For Clamping (Rated Connection)
- Number of connections
- 3
