Hubbell Wiring Device-Kellems 033271042 Overhead DUA-PULL Grip, Flexible Eye, 1.38-1.90 Inch, CSA Certified
- MPN: 033271042
- UPC: 783585317755
- PPN: HBL-033271042
- UNSPSC: 39121722
CAD
$3058.82
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description

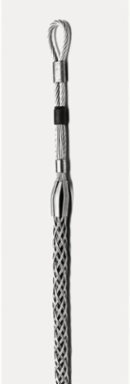

Kellems Wire Management, Pulling Grips, Overhead DUA-PULL Grips, Flexible Eye, 1.38-1.90"
Features
- For overhead transmission line stringing applications
- Works with both bare and insulated conductors and synthetic ropes
- Standard Product
Documentation & Downloads
Specifications
Key Specifications
| Country of Origin | United States |
|---|---|
| Cable Diameter Range | 1.50 in-2.10 in |
| Industry Standard(s) | CSA Certified |
| Cable Size | 1.38"-1.90" (3.51-4.38) |
| Special Features | Standard Product |
| Type | Flexible Eye |
| General Literature Asset 1 Display Text | Pulp & Paper Solutions |
| General Literature Asset 3 Display Text | FOOD & BEVERAGE SOLUTIONS |
| Load Capacity | 13300 |
| Class Code | A52 |
| Freight Class Code | 06168002 |
| Image Actual Or Representative | A |
| Replaced Catalog Number | 08641746 |
| Material - Mounting Hardware | Non-Mounted |
| Construction | Woven |
| Series | Overhead DUA-Pull Grips Series |
| BOX SIZE | 24.000x32.000x18.300 (in) |
| Carton - Number of Sub Packs | 1 |
| Carton - SCC-14 Next Lower Level Sub Pack | 00783585317755 |
| Case Weight | 25.000 lb. |
| Lowest Level UOM | Each |
| Pallet Length | 40.000 in |
| Pallet Width | 48.000 in |
| Approx Breaking Strength | 66,500 lb. |
|---|---|
| Width | 18.300 in |
| Application | Overhead Pulling |
| Load | 13300 |
| Standard | CSA Certified |
| Weight | 25 lb. |
| General Literature Asset 2 Display Text | PULP & PAPER SOLUTIONS |
| Cable Specification | UL Listed Circuit Wire |
| Style | Closed Mesh, Double Weave |
| Description - Invoice | OVHD DUA-PULL GRIP, 1.4-1.9" |
| Harmonization Code | 7326200090 |
| MSDS Flag | No |
| Sub Class Code | A52A480 |
| Color Code | Aluminum |
| Material | Steel, Galvanized |
| Base Unit of Measure | EA |
| Carton - Gross Weight per Pack | 23.400 lb. |
| Carton - Pack Description | Carton |
| Carton - Total Units | 1 |
| Each - Pack Description | Each |
| Pallet Height | 46.000 in |
| Pallet Weight | 90.000 lb. |
| NAICS Code | 3359323114 |
