Hubbell Wiring Device-Kellems 01304009 Splicing Grip 18 Inch Long, .62"- .74" Cable Size, Galvanized
Hubbell Wiring Device-Kellems 01304009 Splicing Grip 18 Inch Long, .62"- .74" Cable Size, Galvanized
- MPN: 01304009
- UPC: 783585326979
- PPN: HBL-01304009
- UNSPSC: 39121449
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$178.40/ EA
Description

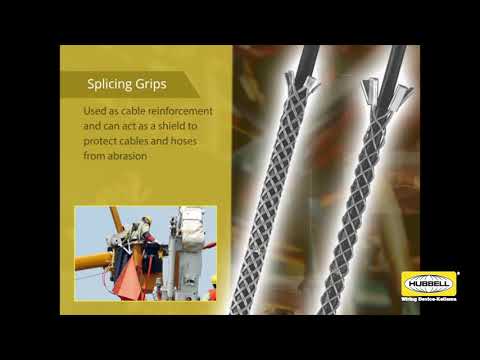

Kellems Wire Management, Pulling Grips, Splicing Grip, .62"-.74", Galvanized, 18" Long
Features
- Double weave construction
- Suitable for splicing
- Standard Product
Specifications
Specifications
- Country of Origin
- Puerto Rico
- Cable Diameter Range
- 0.62 in-0.74 in
- Industry Standard(s)
- CSA Certified
- Application
- Cable and Wire Splicing
- Number of Conductors
- 1 Jacketed Cable
- Standard
- CSA Certified
- General Literature Asset 1 Display Text
- Pulp & Paper Solutions
- General Literature Asset 3 Display Text
- FOOD & BEVERAGE SOLUTIONS
- Display Size
- 18" (45.72) Length
- Style
- Closed Mesh, Double Weave
- Description - Invoice
- SPLICE GRIP, .62"-.74"; GALV, 18" L
- Harmonization Code
- 7326200090
- MSDS Flag
- No
- Material - Mounting Hardware
- On Cable Ends
- Series
- Splicing Grips
- Carton - SCC-14 Next Lower Level Sub Pack
- 00783585326979
- Lowest Level UOM
- Each
Approx Breaking Strength4,400 lb.
Width0.500 in
PerformanceMechanical - Approximate Breaking Strength - 4,400 (19,571) Lbs. (N);Mechanical - Cable Diameter Range - .62"-.74" (1.57-1.88);Mechanical - Working Load - (program formula 5% of Approximate Breaking Strength)
Environmental ConditionsNo Limitations
Special FeaturesStandard Product
TypeTube
General Literature Asset 2 Display TextPULP & PAPER SOLUTIONS
Cable Size.62"-.74" (1.57-1.88)
Number Of Conductors1 Jacketed Cable
Class CodeA52
Freight Class Code06168002
Image Actual Or RepresentativeA
Sub Class CodeA52A480
MaterialSteel, Galvanized
Base Unit of MeasureEA
Each - Pack DescriptionEach
Certifications
- EU RoHS Indicator
- Yes
