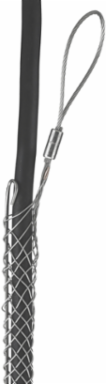

Hubbell Wiring Device-Kellems 03310006 Slack Pulling Grip, Offset Eye, 1.50-1.74 Inch Cable, 1160 lb Load Capacity
- MPN: 03310006
- UPC: 783585316710
- PPN: HBL-03310006
- UNSPSC: 39121722
CAD
$235.29
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
Kellems Wire Management, Slack Pulling Grips, Rod Closing, Offset Eye, 1.50-1.74"
Features
- Single offset eye for easy attachement to pulling line
- Rod closing for split lace closure
- Single weave galvanized steel mesh
- Standard Product
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- United States
- Cable Diameter Range
- 1.50 in-1.74 in
- Industry Standard(s)
- CSA Certified
- Standards - RoHS Compliance Status
- CM
- Cable Size
- 1.50"-1.74" (3.81-4.42)
- Special Features
- Standard Product
- Type
- Offset Eye
- General Literature Asset 2 Display Text
- PULP & PAPER SOLUTIONS
- Cable Specification
- UL Listed Circuit Wire
- Style
- Split Mesh, Rod Closing, Single Weave
- Description - Invoice
- SLACK PULL GRIP SGL EYE, 1.5-1.7" ROD
- Harmonization Code
- 7326200090
- MSDS Flag
- No
- Sub Class Code
- A52A480
- Construction
- Woven
- Series
- Slack Grip Series
- BOX SIZE
- 3.000x32.000x10.750 (in)
- Carton - Number of Sub Packs
- 5
- Carton - SCC-14 Next Lower Level Sub Pack
- 00783585316710
- Case Weight
- 15.700 lb.
- Lowest Level UOM
- Each
Approx Breaking Strength5,800 lb.
Width9.000 in
PerformanceMechanical - Approximate Breaking Strength - 5,800 (25,798) Lbs. (N);Mechanical - Working Load - 1160 (5159.6) Lbs. (N)
ApplicationGeneral Cable Pulling
Load1160
StandardCSA Certified
General Literature Asset 1 Display TextPulp & Paper Solutions
General Literature Asset 3 Display TextFOOD & BEVERAGE SOLUTIONS
Load Capacity1160
Class CodeA52
Freight Class Code06168002
Image Actual Or RepresentativeA
Replaced Catalog Number08642949
Material - Mounting HardwareNon-Mounted
MaterialSteel, Galvanized
Base Unit of MeasureEA
Carton - Gross Weight per Pack3.500 lb.
Carton - Pack DescriptionCarton
Carton - Total Units5
Each - Pack DescriptionEach
NAICS Code3359323114
Certifications
- EU RoHS Indicator
- Yes
