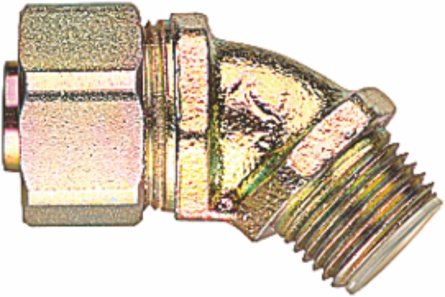

Kopex-ex XRM0304 45 Degree Fitting with External Thread, For Covered Conduit
- MPN: XRM0304
- UPC: 786210254012
- PPN: T-B-XRM0304
CAD
$70.98
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
Liquid Tight Fitting for Covered Conduit, 45 Degree Bend with External Male Thread, Conduit Size 16mm, M20 Thread, Very High Mechanical and UV Protection, IP66, IP67 Ratings, Nickel Plated Brass with a Co-Polyester Seal and Nylon Insert
Documentation & Downloads
Specifications
European Specifications (ETIM)
- ETIM
- EC001180 Screw connection for protective metallic hose
- Nominal size in inch
- 3/8 inch
- Model
- 45°-elbow
- Construction type
- External thread
- Thread connection size
- M20 x 1.5
- Material housing
- Brass
- Thread length
- 14.6mm
- Total height
- 40.5mm
- Approved in combination with protective conduit CSA
- N
- Approved in combination with protective conduit FI
- N
Nominal diameter16mm
Degree of protection (IP) conduit dependantIP66-IP69k
Revolving threadN
Thread typeMetric
One-pieceY
Surface protectionNickel-plated
Total length55mm
Approved in combination with protective conduit DIN EN 61386-23N
Approved in combination with protective conduit ULY
Operating temperature-50-+150°C
North American Specifications (UNSPSC)
- UNSPSC
- 39121420 Liquid tight connectors
- Brand Name
- Kopex
- Special Features
- Very High UV Protection and Mechanical Protection
- Standard
- UL E60625, BSI Kitemark KM-90009, Low Voltage Directive
- Connection
- M20 Thread
- Finish
- Nickel Plated
- Insulation
- IP66, 67 Rating
IGCC4585 Liquid tight connectors
Type45 Degree Fitting with External Thread, For Covered Conduit
ApplicationFor Insertion Into Threaded Entries & Knockouts Using a Locknut to Secure
SizeConduit Size 16mm
MaterialBrass with a Co-Polyester Seal and Nylon Insert
ColorMetallic
Temperature RatingStatic: -50 to 150 Degrees C, Dynamic: -50 to 150 Degrees C
Packaging
- Outer Quantity
- 10
- Weight Uom
- 0.16 lbs. Each
Outer Dimensions (inches)1x1x1
