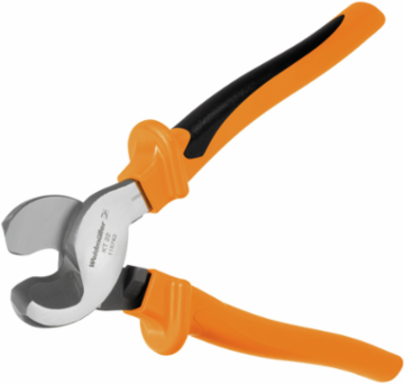

Weidmuller 1157830000 KT 22
- MPN: 1157830000
- PPN: WDM-1157830000
CAD
$132.61
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Cutting tools ,Cutting tool for one-hand operation
Documentation & Downloads
Specifications
Cutting Tools

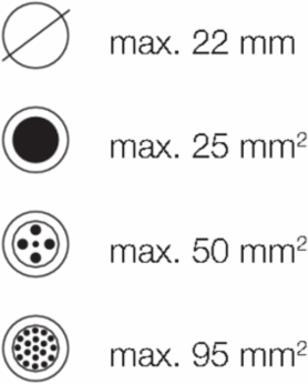

| Copper cable - flexible, max. | 95 mm² |
|---|---|
| Copper cable - solid, max. | 25 mm² |
| Copper cable - stranded, max. | 50 mm² |
| Copper cable, max. diameter | 22 mm |
| Single-core aluminium cable, max.(mm²) | 50 mm² |
| Stranded aluminium cable, max. (AWG) | 2/0 AWG |
| Copper cable - flexible, max. (AWG) | 3/0 AWG |
|---|---|
| Copper cable - solid, max. (AWG) | 3 AWG |
| Copper cable - stranded, max. (AWG) | 1 AWG |
| Data / telephone / control cable, max. Ø | 22 mm |
| Stranded aluminium cable, max (mm²) | 70 mm² |
| Stranded aluminium cable, max. diameter | 22 mm |
Approvals
| Approvals | EAC |
|---|
Dimensions And Weights
| Width | 245 mm |
|---|---|
| Height | 71.5 mm |
| Depth | 31 mm |
| Weight | 460 g |
| Width (inches) | 9.646 inch |
|---|---|
| Height (inches) | 2.815 inch |
| Depth (inches) | 1.22 inch |
| Net weight | 471.68 g |
Classifications
| ETIM 6.0 | EC000142 |
|---|---|
| eClass 9.0 | 21-04-47-01 |
| eClass 10.0 | 21-04-47-01 |
| ETIM 7.0 | EC000142 |
|---|---|
| eClass 9.1 | 21-04-37-06 |
| UNSPSC | 31-16-31-02 |
Environmental Product Compliance
| REACH SVHC | Lead 7439-92-1 |
|---|
Technical Data
| Version | One-hand mechanical |
|---|
