Weidmuller 1195650000 KTB FS 221513 S4E0
- MPN: 1195650000
- PPN: WDM-1195650000
CAD
$1546.88
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description

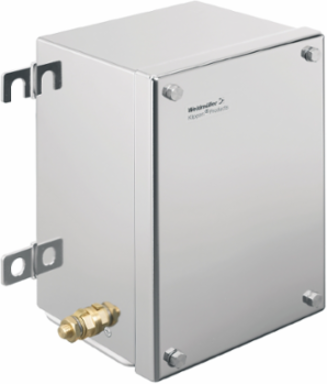

Klippon TB FS (Terminal Box - Fixing Screw), Empty enclosure, stainless steel enclosure, Height: 229 mm, Width: 152 mm, Depth: 133 mm, Material: Stainless steel 1.4404 (316L), electropolished, silver
Documentation & Downloads
Specifications
Approvals
- Approvals
- CCOE, CE, CULUS, DNV GL, IBEXUATEX, IECEXIBE, IECEXKEM, IECEXPTB, INMETRO, KEMAATEX, KOREANCERT, MARITREG, NEPSI, PTBATEX
- UL File Number Search
- E256877
ROHSConform

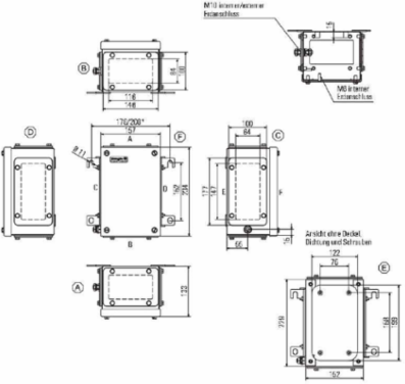

Dimensions And Weights
- Width
- 152 mm
- Height
- 229 mm
- Depth
- 133 mm
- Mounting dimension - width
- 178 mm
- Net weight
- 3,578 g
Width (inches)5.984 inch
Height (inches)9.016 inch
Depth (inches)5.236 inch
Mounting dimension - height152 mm
Horizontal Assembly
- WDU 10 / ZDU 10
- 1x7
- WDU 2,5 / ZDU 2,5 / IDU 2,5
- 1x15
- WDU 4 / ZDU 4
- 1x13
WDU 16 / ZDU 161x6
WDU 35 / ZDU 351x3
WDU 6 / ZDU 61x9
Housing Earth
- Earth, enclosure, internal
- Welded-on M6 stainless-steel earth stud in enclosure body and lid., Continuous M10 earth stud in body enclosure
Classifications
- ETIM 6.0
- EC002503
- eClass 9.0
- 27-18-05-02
- eClass 10.0
- 27-18-05-02
ETIM 7.0EC002503
eClass 9.127-18-05-02
Product Information
- Product information
- Minimum order quantity (20 pieces)
Environmental Product Compliance
- REACH SVHC
- Lead 7439-92-1
Vertical Assembly
- WDU 10 / ZDU 10
- 1x13
- WDU 2,5 / ZDU 2,5 / IDU 2,5
- 1x29
- WDU 4 / ZDU 4
- 1x22
WDU 16 / ZDU 161x11
WDU 35 / ZDU 351x8
WDU 6 / ZDU 61x16
Cable Glands, Top/Bottom
- M12
- 6
- M20
- 2
- M32
- 1
- M50
- 0
- M75
- 0
M165
M252
M401
M630
Cable Glands, Right
- M12
- 8
- M20
- 3
- M32
- 2
- M50
- 0
- M75
- 0
M166
M252
M402
M630
Cable Glands, Left
- M12
- 8
- M20
- 3
- M32
- 2
- M50
- 0
- M75
- 0
M166
M252
M402
M630
General Information
- AF size 1
- 10 mm
- Access opening: width
- 122 mm
- Installation advice
- Terminal rail / mounting plate
- Material thickness of cover
- 1.5 mm
- Max. payload
- 14 kg
- Position PE bolts
- Page C
- Torque for lid screws
- 2.5 Nm
- Seal material
- Silicone
- Operating temperature, min.
- -60 °C
- Impact resistance
- 7 J ATEX version, 10 J version standard
- Note: protection class
- If used in temperature ranges above 105 °C, IP protection is limited to IP 66.
- Lid attachment
- M6 hex-head slotted screws SW10
Access opening: height199 mm
Areas of useExplosive risk zone, Process industry, Oil and gas industry, Chemical industry, Offshore, Onshore
Material thickness1.5 mm
Material thickness of flange3 mm
Overall dimensions229 x 203 x 141.5
StandardsDIN EN 62208 - Empty enclosure standard, DIN EN 15085-2, EN 60079-0, EN 60079-7, EN 60079-31, IEC 60079-0, IEC 60079-7, IEC 60079-31
MaterialStainless steel 1.4404 (316L)
Surface finishelectropolished
Operating temperature, max.135 °C
Protection degreeIP66, IP67
Enclosure attachment4 welded-on mounting feet with 11 mm holes (2 slotted feet and 2 cross-shaped feet)
Integral fixing4, 6 or 9 stud bolts M6 inner (female) thread
Certificate Numbers Enclosure
- Certificate no. assembled enclosure (ATEX)
- IBExU14ATEX1050
- Certificate no. assembled enclosure (IECEx)
- IECEXIBE14.0013
- Certificate no., assembled enclosure (EAC)
- RU C-DE.ГБ08.B.01328
- Certificate no. assembled enclosure (INMETRO)
- IEx 17.0021
- Certificate no. assembled enclosure (AEx)
- E223792
- Certificate no. assembled enclosure (NEPSI)
- GYJ14.1309
- Certificate No. (MARITREG)
- 15.40074.250
- Certificate No. (CCOE)
- CCOEP267536/2
Certificate no. empty enclosure (ATEX)IBExU14ATEX1028 U
Certificate no. empty enclosure (IECEx)IECEx IBE 14.0004U
Certificate no., empty enclosure (EAC)RU C-DE.ГБ08.B.00472
Certificate no. empty enclosure (INMETRO)IEx 17.0020U
Certificate no. empty enclosure (NEPSI)GYJ14.1308U
Certificate no., assembled enclosure (KOSHA)16-AV4BO-0245X
Certificate no. (cULus)E256877
