Weidmuller 1195930000 KTB FS 352615 S4E3
Weidmuller 1195930000 KTB FS 352615 S4E3
- MPN: 1195930000
- PPN: WDM-1195930000
Spec sheet
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$3093.19/ EA
Description

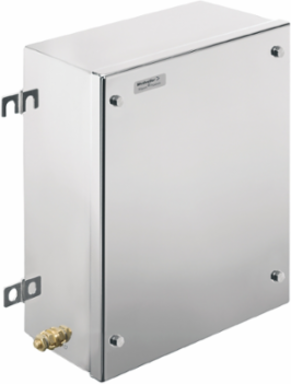

Klippon TB FS (Terminal Box - Fixing Screw), Empty enclosure, stainless steel enclosure, Height: 350 mm, Width: 260 mm, Depth: 150 mm, Gland plates: Bottom, left, right, Material: Stainless steel 1.4404 (316L), electropolished, silver
Specifications
Approvals
- Approvals
- CCOE, CE, CULUS, DNV GL, IBEXUATEX, IECEXIBE, IECEXKEM, IECEXPTB, INMETRO, KEMAATEX, KOREANCERT, NEPSI, PTBATEX
UL File Number SearchE256877

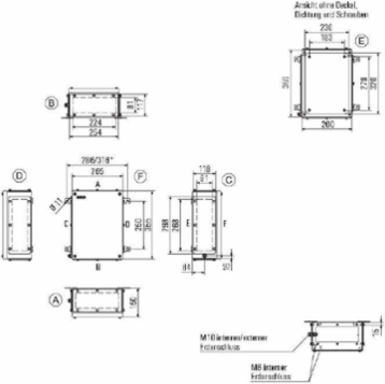

Dimensions And Weights
- Width
- 260 mm
- Height
- 350 mm
- Depth
- 150 mm
- Mounting dimension - width
- 316 mm
- Net weight
- 6,840 g
Width (inches)10.236 inch
Height (inches)13.78 inch
Depth (inches)5.905 inch
Mounting dimension - height250 mm
Horizontal Assembly
- WDU 10 / ZDU 10
- 2x17
- WDU 2,5 / ZDU 2,5 / IDU 2,5
- 2x34
- WDU 4 / ZDU 4
- 2x29
WDU 16 / ZDU 161x14
WDU 35 / ZDU 351x11
WDU 6 / ZDU 62x22
Housing Earth
- Earth, enclosure, internal
- Welded-on M6 stainless-steel earth stud in enclosure body and lid., Continuous M10 earth stud in body enclosure
Classifications
- ETIM 6.0
- EC002503
- eClass 9.0
- 27-18-05-02
- eClass 10.0
- 27-18-05-02
ETIM 7.0EC002503
eClass 9.127-18-05-02
Product Information
- Product information
- Minimum order quantity (20 pieces)
Environmental Product Compliance
- REACH SVHC
- Lead 7439-92-1
Vertical Assembly
- WDU 10 / ZDU 10
- 1x27
- WDU 2,5 / ZDU 2,5 / IDU 2,5
- 2x53
- WDU 4 / ZDU 4
- 1x44
WDU 16 / ZDU 161x22
WDU 35 / ZDU 351x15
WDU 6 / ZDU 61x33
Cable Glands, Top/Bottom
- M12
- 20
- M20
- 9
- M32
- 3
- M50
- 2
- M75
- 0
M1611
M254
M403
M630
Cable Glands, Right
- M12
- 23
- M20
- 11
- M32
- 4
- M50
- 3
- M75
- 0
M1613
M255
M403
M630
Cable Glands, Left
- M12
- 23
- M20
- 11
- M32
- 4
- M50
- 3
- M75
- 0
M1613
M255
M403
M630
General Information
- AF size 1
- 10 mm
- Access opening: width
- 230 mm
- Gland plates
- Bottom, left, right
- Material thickness
- 1.5 mm
- Material thickness of flange
- 3 mm
- Overall dimensions
- 361 x 341 x 158.5
- Standards
- DIN EN 62208 - Empty enclosure standard, DIN EN 15085-2, EN 60079-0, EN 60079-7, EN 60079-31, IEC 60079-0, IEC 60079-7, IEC 60079-31
- Material
- Stainless steel 1.4404 (316L)
- Surface finish
- electropolished
- Operating temperature, max.
- 135 °C
- Protection degree
- IP66, IP67
- Enclosure attachment
- 4 welded-on mounting feet with 11 mm holes (2 slotted feet and 2 cross-shaped feet)
- Integral fixing
- 4, 6 or 9 stud bolts M6 inner (female) thread
Access opening: height320 mm
Areas of useExplosive risk zone, Process industry, Oil and gas industry, Chemical industry, Offshore, Onshore
Installation adviceTerminal rail / mounting plate
Material thickness of cover1.5 mm
Max. payload36 kg
Position PE boltsPage C
Torque for lid screws2.5 Nm
Seal materialSilicone
Operating temperature, min.-60 °C
Impact resistance7 J ATEX version, 10 J version standard
Note: protection classIf used in temperature ranges above 105 °C, IP protection is limited to IP 66.
Lid attachmentM6 hex-head slotted screws SW10
Certificate Numbers Enclosure
- Certificate no. assembled enclosure (ATEX)
- IBExU14ATEX1050
- Certificate no. assembled enclosure (IECEx)
- IECEXIBE14.0013
- Certificate no., assembled enclosure (EAC)
- RU C-DE.ГБ08.B.01328
- Certificate no. assembled enclosure (INMETRO)
- IEx 17.0021
- Certificate no. assembled enclosure (AEx)
- E223792
- Certificate no. assembled enclosure (NEPSI)
- GYJ14.1309
- Certificate no. (cULus)
- E256877
Certificate no. empty enclosure (ATEX)IBExU14ATEX1028 U
Certificate no. empty enclosure (IECEx)IECEx IBE 14.0004U
Certificate no., empty enclosure (EAC)RU C-DE.ГБ08.B.00472
Certificate no. empty enclosure (INMETRO)IEx 17.0020U
Certificate no. empty enclosure (NEPSI)GYJ14.1308U
Certificate no., assembled enclosure (KOSHA)16-AV4BO-0245X
Certificate No. (CCOE)CCOEP267536/2
