Weidmuller 1196400000 KTB FS 624515 S4E0

KTB FS 624515 S4E0 - https://media.province-electric.com/web-weidmueller/2019q4/9bc369f9929d588da5aef104d38ff8df86a72219-medium.png

MPN: 1196400000
PPN: WDM-1196400000

Spec sheet

In Stock

Company Stock:

Lead times may vary. For an accurate estimate please contact us.

Looking to buy a large quantity?

To view product inventory

CAD$4225.34/ EA

Qty:

Loading add to cart quantity...

Description

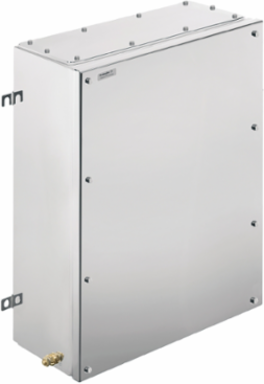

Klippon TB FS (Terminal Box - Fixing Screw), Empty enclosure, stainless steel enclosure, Height: 620 mm, Width: 450 mm, Depth: 150 mm, Material: Stainless steel 1.4404 (316L), electropolished, silver

Specifications

Approvals

Approvals: CCOE, CE, CULUS, DNV GL, IBEXUATEX, IECEXIBE, IECEXKEM, IECEXPTB, INMETRO, KEMAATEX, KOREANCERT, NEPSI, PTBATEX

UL File Number SearchE256877

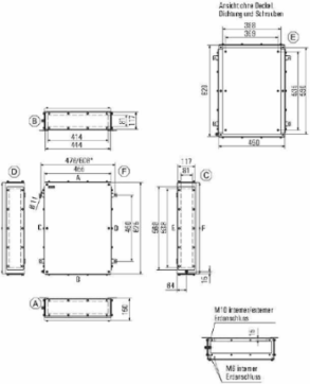

Dimensions And Weights

Width: 450 mm

Height: 620 mm

Depth: 150 mm

Mounting dimension - width: 476 mm

Net weight: 10,350 g

Width (inches)17.716 inch

Height (inches)24.409 inch

Depth (inches)5.905 inch

Mounting dimension - height450 mm

Horizontal Assembly

WDU 10 / ZDU 10: 4x36

WDU 2,5 / ZDU 2,5 / IDU 2,5: 5x71

WDU 4 / ZDU 4: 5x59

WDU 16 / ZDU 163x30

WDU 35 / ZDU 352x22

WDU 6 / ZDU 64x45

Housing Earth

Earth, enclosure, internal: Welded-on M6 stainless-steel earth stud in enclosure body and lid., Continuous M10 earth stud in body enclosure

Classifications

ETIM 6.0: EC002503

eClass 9.0: 27-18-05-02

eClass 10.0: 27-18-05-02

ETIM 7.0EC002503

eClass 9.127-18-05-02

Product Information

Product information: Minimum order quantity (5 pieces)

Environmental Product Compliance

REACH SVHC: Lead 7439-92-1

Vertical Assembly

WDU 10 / ZDU 10: 2x53

WDU 2,5 / ZDU 2,5 / IDU 2,5: 3x105

WDU 4 / ZDU 4: 3x88

WDU 16 / ZDU 162x44

WDU 35 / ZDU 351x33

WDU 6 / ZDU 63x66

Cable Glands, Top/Bottom

M12: 38

M20: 18

M32: 6

M50: 4

M75: 0

M1621

M258

M405

M630

Cable Glands, Right

M12: 48 ???New14???

M20: 24 ???New14???

M32: 9

M50: 6

M75: 0

M1627 ???New14???

M2510

M407 ???New14???

M630

Cable Glands, Left

M12: 48 ???New14???

M20: 24 ???New14???

M32: 9

M50: 6

M75: 0

M1627 ???New14???

M2510

M407 ???New14???

M630

General Information

AF size 1: 10 mm

Access opening: width: 398 mm

Installation advice: Terminal rail / mounting plate

Material thickness of cover: 1.5 mm

Max. payload: 112 kg

Position PE bolts: Page C

Torque for lid screws: 2.5 Nm

Seal material: Silicone

Operating temperature, min.: -60 °C

Impact resistance: 7 J ATEX version, 10 J version standard

Note: protection class: If used in temperature ranges above 105 °C, IP protection is limited to IP 66.

Lid attachment: M6 hex-head slotted screws SW10

Access opening: height590 mm

Areas of useExplosive risk zone, Process industry, Oil and gas industry, Chemical industry, Offshore, Onshore

Material thickness1.5 mm

Material thickness of flange3 mm

Overall dimensions620 x 501 x 158.5

StandardsDIN EN 62208 - Empty enclosure standard, DIN EN 15085-2, EN 60079-0, EN 60079-7, EN 60079-31, IEC 60079-0, IEC 60079-7, IEC 60079-31

MaterialStainless steel 1.4404 (316L)

Surface finishelectropolished

Operating temperature, max.135 °C

Protection degreeIP66, IP67

Enclosure attachment4 welded-on mounting feet with 11 mm holes (2 slotted feet and 2 cross-shaped feet)

Integral fixing4, 6 or 9 stud bolts M6 inner (female) thread

Certificate Numbers Enclosure

Certificate no. assembled enclosure (ATEX): IBExU14ATEX1050

Certificate no. assembled enclosure (IECEx): IECEXIBE14.0013

Certificate no., assembled enclosure (EAC): RU C-DE.ГБ08.B.01328

Certificate no. assembled enclosure (INMETRO): IEx 17.0021

Certificate no. assembled enclosure (AEx): E223792

Certificate no. assembled enclosure (NEPSI): GYJ14.1309

Certificate no. (cULus): E256877

Certificate no. empty enclosure (ATEX)IBExU14ATEX1028 U

Certificate no. empty enclosure (IECEx)IECEx IBE 14.0004U

Certificate no., empty enclosure (EAC)RU C-DE.ГБ08.B.00472

Certificate no. empty enclosure (INMETRO)IEx 17.0020U

Certificate no. empty enclosure (NEPSI)GYJ14.1308U

Certificate no., assembled enclosure (KOSHA)16-AV4BO-0245X

Certificate No. (CCOE)CCOEP267536/2
