Weidmuller 1194630000 Klippon TB MH Terminal Box, Stainless Steel 1.4404, 10.236 Inch Height, 10.236 Inch Width, 5.905 Inch Depth
Weidmuller 1194630000 Klippon TB MH Terminal Box, Stainless Steel 1.4404, 10.236 Inch Height, 10.236 Inch Width, 5.905 Inch Depth
- MPN: 1194630000
- PPN: WDM-1194630000
Spec sheet
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$1342.57/ EA
Description

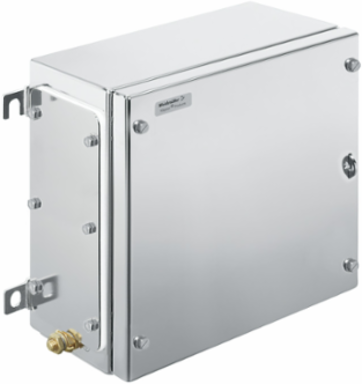

Klippon TB MH (Terminal Box - Multi Hinge), Empty enclosure, stainless steel enclosure, Height: 260 mm, Width: 260 mm, Depth: 150 mm, Gland plates: Bottom, left, right, Material: Stainless steel 1.4404 (316L), electropolished, silver
Specifications
Approvals
- Approvals
- CCOE, CE, CULUS, DNV GL, EAC, IBEXUATEX, IECEXIBE, IECEXKEM, IECEXPTB, INMETRO, KEMAATEX, KOREANCERT, MARITREG, NEPSI, PTBATEX
- UL File Number Search
- E243298
ROHSConform

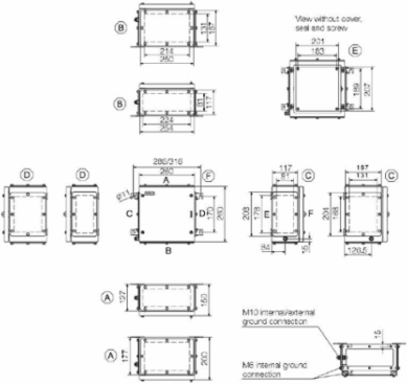

Dimensions And Weights
- Width
- 260 mm
- Height
- 260 mm
- Depth
- 150 mm
- Mounting dimension - width
- 316 mm
- Net weight
- 5,780 g
Width (inches)10.236 inch
Height (inches)10.236 inch
Depth (inches)5.905 inch
Mounting dimension - height170 mm
Horizontal Assembly
- WDU 10 / ZDU 10
- 1x17
- WDU 2,5 / ZDU 2,5 / IDU 2,5
- 2x34
- WDU 6 / ZDU 6
- 1x22
WDU 16 / ZDU 161x14
WDU 4 / ZDU 41x29
Housing Earth
- Earth, enclosure, internal
- Welded-on M6 stainless-steel earth stud in enclosure body and lid.
Classifications
- ETIM 6.0
- EC002503
- eClass 9.0
- 27-18-05-02
- eClass 10.0
- 27-18-05-02
ETIM 7.0EC002503
eClass 9.127-18-05-02
Product Information
- Product information
- *A customised test is required to guarantee application compliance
Environmental Product Compliance
- REACH SVHC
- Lead 7439-92-1
Vertical Assembly
- WDU 10 / ZDU 10
- 1x18
- WDU 2,5 / ZDU 2,5 / IDU 2,5
- 2x35
- WDU 6 / ZDU 6
- 1x22
WDU 16 / ZDU 161x15
WDU 4 / ZDU 41x30
Cable Glands, Top/Bottom
- M12
- 20
- M20
- 9
- M32
- 3
- M50
- 2
- M75
- 0
M1611
M254
M403
M630
Cable Glands, Right
- M12
- 15 ???New14???
- M20
- 7 ???New14???
- M32
- 2
- M50
- 2
- M75
- 0
M168
M253
M402
M630
Cable Glands, Left
- M12
- 15 ???New14???
- M20
- 7 ???New14???
- M32
- 2
- M50
- 2
- M75
- 0
M168
M253
M402
M630
General Information
- AF size 1
- 10 mm
- Access opening: width
- 201 mm
- Gland plates
- Bottom, left, right
- Material thickness
- 1.5 mm
- Material thickness of flange
- 3 mm
- Opening angle lid
- 130 °
- Position PE bolts
- Page C
- Torque for lid screws
- 2.5 Nm
- Seal material
- Silicone
- Operating temperature, min.
- -60 °C
- Impact resistance
- 7 J ATEX version, 10 J version standard
- Note: protection class
- If used in temperature ranges above 105 °C, IP protection is limited to IP 66.
- Lid attachment
- 4 hinges and M6 hex-head slotted screws SW10
Access opening: height207 mm
Areas of useExplosive risk zone, Process industry, Oil and gas industry, Chemical industry, Offshore, Onshore
Installation adviceTerminal rail / mounting plate
Material thickness of cover1.5 mm
Max. payload27 kg
Overall dimensions271 x 341 x 165
StandardsDIN EN 62208 - Empty enclosure standard, DIN EN 61373 Class 1B**, DIN EN 15085-2, EN 60079-0, EN 60079-7, EN 60079-31, IEC 60079-0, IEC 60079-7, IEC 60079-31
MaterialStainless steel 1.4404 (316L)
Surface finishelectropolished
Operating temperature, max.135 °C
Protection degreeIP66, IP67
Enclosure attachment4 welded-on mounting feet with 11 mm holes (2 slotted feet and 2 cross-shaped feet)
Integral fixing4, 6 or 9 stud bolts M6 inner (female) thread
Certificate Numbers Enclosure
- Certificate no. assembled enclosure (ATEX)
- IBExU14ATEX1050
- Certificate no. assembled enclosure (IECEx)
- IECEXIBE14.0013
- Certificate no., assembled enclosure (EAC)
- RU C-DE.ГБ08.B.01328
- Certificate no. assembled enclosure (INMETRO)
- IEx 17.0021
- Certificate no. assembled enclosure (AEx)
- E223792
- Certificate no. assembled enclosure (NEPSI)
- GYJ14.1309
- Certificate No. (MARITREG)
- 15.40073.250
- Certificate No. (CCOE)
- CCOEP267536/1
Certificate no. empty enclosure (ATEX)IBExU14ATEX1028 U
Certificate no. empty enclosure (IECEx)IECEx IBE 14.0004U
Certificate no., empty enclosure (EAC)RU C-DE.ГБ08.B.00472
Certificate no. empty enclosure (INMETRO)IEx 17.0020U
Certificate no. empty enclosure (NEPSI)GYJ14.1308U
Certificate no., assembled enclosure (KOSHA)16-AV4BO-0245X
Certificate no. (cULus)E243298
