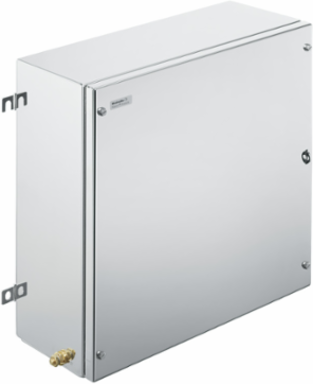

Weidmuller 1195170000 Klippon TB MH Stainless Steel Terminal Box 480x480x200mm, IP66, Gland Plates Top/Bottom
- MPN: 1195170000
- PPN: WDM-1195170000
CAD
$3541.73
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Klippon TB MH (Terminal Box - Multi Hinge), Empty enclosure, stainless steel enclosure, Height: 480 mm, Width: 480 mm, Depth: 200 mm, Gland plates: Bottom, top, Material: Stainless steel 1.4404 (316L), electropolished, silver
Documentation & Downloads
Specifications
Approvals
| Approvals | CCOE, CE, CULUS, DNV GL, EAC, IBEXUATEX, IECEXIBE, IECEXKEM, IECEXPTB, INMETRO, KEMAATEX, KOREANCERT, MARITREG, NEPSI, PTBATEX |
|---|---|
| UL File Number Search | E243298 |
| ROHS | Conform |
|---|

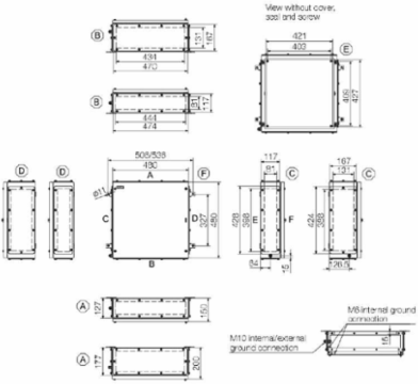

Dimensions And Weights
| Width | 480 mm |
|---|---|
| Height | 480 mm |
| Depth | 200 mm |
| Mounting dimension - width | 506 mm |
| Net weight | 15,840 g |
| Width (inches) | 18.898 inch |
|---|---|
| Height (inches) | 18.898 inch |
| Depth (inches) | 7.874 inch |
| Mounting dimension - height | 327 mm |
Horizontal Assembly
| WDU 10 / ZDU 10 | 3x39 |
|---|---|
| WDU 2,5 / ZDU 2,5 / IDU 2,5 | 4x77 |
| WDU 4 / ZDU 4 | 3x64 |
| WDU 16 / ZDU 16 | 2x32 |
|---|---|
| WDU 35 / ZDU 35 | 2x24 |
| WDU 6 / ZDU 6 | 3x48 |
Housing Earth
| Earth, enclosure, internal | Welded-on M6 stainless-steel earth stud in enclosure body and lid. |
|---|
Classifications
| ETIM 6.0 | EC002503 |
|---|---|
| eClass 9.0 | 27-18-05-02 |
| eClass 10.0 | 27-18-05-02 |
| ETIM 7.0 | EC002503 |
|---|---|
| eClass 9.1 | 27-18-05-02 |
Product Information
| Product information | Minimum order quantity (10 pieces)**A customised test is required to guarantee application compliance |
|---|
Environmental Product Compliance
| REACH SVHC | Lead 7439-92-1 |
|---|
Vertical Assembly
| WDU 10 / ZDU 10 | 2x39 |
|---|---|
| WDU 2,5 / ZDU 2,5 / IDU 2,5 | 4x78 |
| WDU 4 / ZDU 4 | 3x65 |
| WDU 16 / ZDU 16 | 2x33 |
|---|---|
| WDU 35 / ZDU 35 | 1x25 |
| WDU 6 / ZDU 6 | 3x49 |
Cable Glands, Top/Bottom
| M12 | 65 ???New14??? |
|---|---|
| M20 | 29 ???New14??? |
| M32 | 13 |
| M50 | 5 |
| M75 | 3 |
| M16 | 44 |
|---|---|
| M25 | 24 ???New14??? |
| M40 | 11 |
| M63 | 4 |
Cable Glands, Right
| M12 | 60 ???New14??? |
|---|---|
| M20 | 26 ???New14??? |
| M32 | 12 ???New14??? |
| M50 | 4 |
| M75 | 3 |
| M16 | 40 ???New14??? |
|---|---|
| M25 | 21 |
| M40 | 10 |
| M63 | 4 |
Cable Glands, Left
| M12 | 60 ???New14??? |
|---|---|
| M20 | 26 ???New14??? |
| M32 | 12 ???New14??? |
| M50 | 4 |
| M75 | 3 |
| M16 | 40 ???New14??? |
|---|---|
| M25 | 21 |
| M40 | 10 |
| M63 | 4 |
General Information
| AF size 1 | 10 mm |
|---|---|
| Access opening: width | 421 mm |
| Gland plates | Bottom, top |
| Material thickness | 1.5 mm |
| Material thickness of flange | 3 mm |
| Opening angle lid | 130 ° |
| Position PE bolts | Page C |
| Torque for lid screws | 2.5 Nm |
| Seal material | Silicone |
| Operating temperature, min. | -60 °C |
| Impact resistance | 7 J ATEX version, 10 J version standard |
| Note: protection class | If used in temperature ranges above 105 °C, IP protection is limited to IP 66. |
| Lid attachment | 4 hinges and M6 hex-head slotted screws SW10 |
| Access opening: height | 427 mm |
|---|---|
| Areas of use | Explosive risk zone, Process industry, Oil and gas industry, Chemical industry, Offshore, Onshore |
| Installation advice | Terminal rail / mounting plate |
| Material thickness of cover | 1.5 mm |
| Max. payload | 92 kg |
| Overall dimensions | 502 x 531 x 215 |
| Standards | DIN EN 62208 - Empty enclosure standard, DIN EN 61373 Class 1B**, DIN EN 15085-2, EN 60079-0, EN 60079-7, EN 60079-31, IEC 60079-0, IEC 60079-7, IEC 60079-31 |
| Material | Stainless steel 1.4404 (316L) |
| Surface finish | electropolished |
| Operating temperature, max. | 135 °C |
| Protection degree | IP66, IP67 |
| Enclosure attachment | 4 welded-on mounting feet with 11 mm holes (2 slotted feet and 2 cross-shaped feet) |
| Integral fixing | 4, 6 or 9 stud bolts M6 inner (female) thread |
Certificate Numbers Enclosure
| Certificate no. assembled enclosure (ATEX) | IBExU14ATEX1050 |
|---|---|
| Certificate no. assembled enclosure (IECEx) | IECEXIBE14.0013 |
| Certificate no., assembled enclosure (EAC) | RU C-DE.ГБ08.B.01328 |
| Certificate no. assembled enclosure (INMETRO) | IEx 17.0021 |
| Certificate no. assembled enclosure (AEx) | E223792 |
| Certificate no. assembled enclosure (NEPSI) | GYJ14.1309 |
| Certificate No. (MARITREG) | 15.40073.250 |
| Certificate No. (CCOE) | CCOEP267536/1 |
| Certificate no. empty enclosure (ATEX) | IBExU14ATEX1028 U |
|---|---|
| Certificate no. empty enclosure (IECEx) | IECEx IBE 14.0004U |
| Certificate no., empty enclosure (EAC) | RU C-DE.ГБ08.B.00472 |
| Certificate no. empty enclosure (INMETRO) | IEx 17.0020U |
| Certificate no. empty enclosure (NEPSI) | GYJ14.1308U |
| Certificate no., assembled enclosure (KOSHA) | 16-AV4BO-0245X |
| Certificate no. (cULus) | E243298 |
