Weidmuller 1200570000 KTB QL 553515 S4E2

MPN: 1200570000
PPN: WDM-1200570000

$2825.70

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Loading add to cart quantity...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

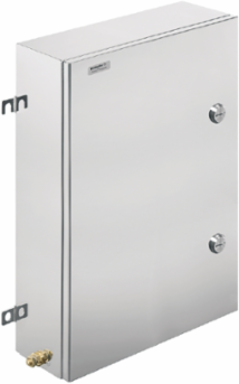

Klippon TB QL (Terminal Box - Quarter Lock), Empty enclosure, stainless steel enclosure, Height: 550 mm, Width: 350 mm, Depth: 150 mm, Gland plates: Bottom, top, Material: Stainless steel 1.4404 (316L), electropolished, silver

Documentation & Downloads

Specifications

Approvals

Approvals	CE, CULUS, DNV GL, EAC, IBEXUATEX, IECEXIBE, IECEXKEM, IECEXPTB, INMETRO, KEMAATEX, KOREANCERT, NEPSI, PTBATEX
UL File Number Search	E243298

ROHS	Conform

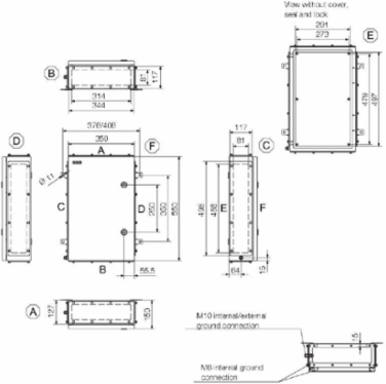

Dimensions And Weights

Width	350 mm
Height	550 mm
Depth	150 mm
Mounting dimension - width	376 mm
Net weight	9,500 g

Width (inches)	13.78 inch
Height (inches)	21.653 inch
Depth (inches)	5.905 inch
Mounting dimension - height	350 mm

Horizontal Assembly

WDU 10 / ZDU 10	3x26
WDU 2,5 / ZDU 2,5 / IDU 2,5	4x52
WDU 4 / ZDU 4	4x43

WDU 16 / ZDU 16	3x22
WDU 35 / ZDU 35	2x16
WDU 6 / ZDU 6	4x32

Housing Earth

Earth, enclosure, internal	Welded-on M6 stainless-steel earth stud in enclosure body and lid.

Classifications

ETIM 6.0	EC002503
eClass 9.0	27-18-05-02
eClass 10.0	27-18-05-02

ETIM 7.0	EC002503
eClass 9.1	27-18-05-02

Product Information

Product information	Minimum order quantity (10 pieces)**A customised test is required to guarantee application compliance

Environmental Product Compliance

REACH SVHC	Lead 7439-92-1

Vertical Assembly

WDU 10 / ZDU 10	2x46
WDU 2,5 / ZDU 2,5 / IDU 2,5	2x91
WDU 4 / ZDU 4	2x76

WDU 16 / ZDU 16	1x39
WDU 35 / ZDU 35	1x29
WDU 6 / ZDU 6	2x58

Cable Glands, Top/Bottom

M12	27 ???New14???
M20	13
M32	5
M50	3
M75	0

M16	15 ???New14???
M25	6
M40	4
M63	0

Cable Glands, Right

M12	42
M20	20
M32	7 ???New14???
M50	5
M75	0

M16	24 ???New14???
M25	9
M40	6
M63	0

Cable Glands, Left

M12	42
M20	20
M32	7 ???New14???
M50	5
M75	0

M16	24 ???New14???
M25	9
M40	6
M63	0

General Information

AF size 1	10 mm
Access opening: width	291 mm
Gland plates	Bottom, top
Material thickness	1.5 mm
Material thickness of flange	3 mm
Opening angle lid	130 °
Position PE bolts	Page C
Material	Stainless steel 1.4404 (316L)
Surface finish	electropolished
Operating temperature, max.	135 °C
Protection degree	IP66
Enclosure attachment	4 welded-on mounting feet with 11 mm holes (2 slotted feet and 2 cross-shaped feet)
Integral fixing	4, 6 or 9 stud bolts M6 inner (female) thread

Access opening: height	497 mm
Areas of use	Explosive risk zone, Process industry, Oil and gas industry, Chemical industry, Offshore, Onshore
Installation advice	Terminal rail / mounting plate
Material thickness of cover	1.5 mm
Max. payload	77 kg
Overall dimensions	572 x 401 x 160
Standards	DIN EN 62208 - Empty enclosure standard, DIN EN 61373 Class 1B**, DIN EN 15085-2, EN 60079-0, EN 60079-7, EN 60079-31, IEC 60079-0, IEC 60079-7, IEC 60079-31
Seal material	Silicone
Operating temperature, min.	-60 °C
Impact resistance	7 J ATEX version, 10 J version standard
Note: protection class	If used in temperature ranges above 105 °C, IP protection is limited to IP 66.
Lid attachment	Quarter-turn fastener with slotted insert

Certificate Numbers Enclosure

Certificate no. assembled enclosure (ATEX)	IBExU14ATEX1050
Certificate no. assembled enclosure (IECEx)	IECEXIBE14.0013
Certificate no., assembled enclosure (EAC)	RU C-DE.ГБ08.B.01328
Certificate no. assembled enclosure (INMETRO)	IEx 17.0021
Certificate no. assembled enclosure (AEx)	E223792
Certificate no. assembled enclosure (NEPSI)	GYJ14.1309
Certificate no. (cULus)	E243298

Certificate no. empty enclosure (ATEX)	IBExU14ATEX1028 U
Certificate no. empty enclosure (IECEx)	IECEx IBE 14.0004U
Certificate no., empty enclosure (EAC)	RU C-DE.ГБ08.B.00472
Certificate no. empty enclosure (INMETRO)	IEx 17.0020U
Certificate no. empty enclosure (NEPSI)	GYJ14.1308U
Certificate no., assembled enclosure (KOSHA)	16-AV4BO-0245X
