Weidmuller 1200870000 KTB QL 765020 S4E4

MPN: 1200870000
PPN: WDM-1200870000

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

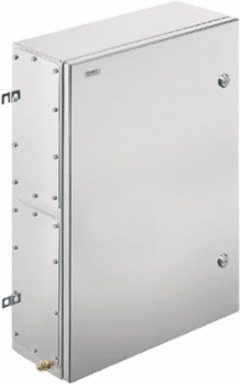

Klippon TB QL (Terminal Box - Quarter Lock), Empty enclosure, stainless steel enclosure, Height: 762 mm, Width: 508 mm, Depth: 200 mm, Gland plates: Bottom, top, left, right, Material: Stainless steel 1.4404 (316L), electropolished, silver

Documentation & Downloads

Specifications

Approvals

Approvals	CE, CULUS, DNV GL, EAC, IBEXUATEX, IECEXIBE, IECEXKEM, IECEXPTB, INMETRO, KEMAATEX, KOREANCERT, NEPSI, PTBATEX
UL File Number Search	E243298

ROHS	Conform

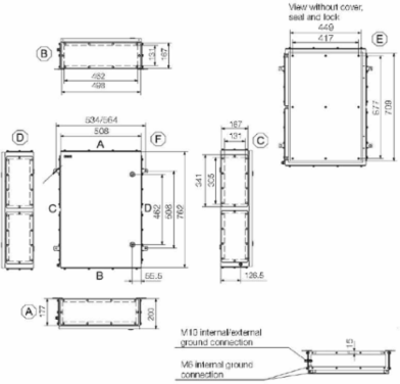

Dimensions And Weights

Width	508 mm
Height	762 mm
Depth	200 mm
Mounting dimension - width	564 mm
Net weight	26,000 g

Width (inches)	20 inch
Height (inches)	30 inch
Depth (inches)	7.874 inch
Mounting dimension - height	508 mm

Horizontal Assembly

WDU 10 / ZDU 10	5x42
WDU 2,5 / ZDU 2,5 / IDU 2,5	7x82
WDU 4 / ZDU 4	6x69

WDU 16 / ZDU 16	4x35
WDU 35 / ZDU 35	3x26
WDU 6 / ZDU 6	5x52

Housing Earth

Earth, enclosure, internal	Welded-on M6 stainless-steel earth stud in enclosure body and lid.

Classifications

ETIM 6.0	EC002503
eClass 9.0	27-18-05-02
eClass 10.0	27-18-05-02

ETIM 7.0	EC002503
eClass 9.1	27-18-05-02

Product Information

Product information	Minimum order quantity (5 pieces)**A customised test is required to guarantee application compliance

Environmental Product Compliance

REACH SVHC	Lead 7439-92-1

Vertical Assembly

WDU 10 / ZDU 10	3x67
WDU 2,5 / ZDU 2,5 / IDU 2,5	4x132
WDU 4 / ZDU 4	4x111

WDU 16 / ZDU 16	2x56
WDU 35 / ZDU 35	2x42
WDU 6 / ZDU 6	3x83

Cable Glands, Top/Bottom

M12	70
M20	32 ???New14???
M32	14 ???New14???
M50	5
M75	3

M16	48 ???New14???
M25	26 ???New14???
M40	12 ???New14???
M63	4

Cable Glands, Right

M12	96
M20	40 ???New14???
M32	18
M50	6
M75	4

M16	64
M25	34
M40	14 ???New14???
M63	6

Cable Glands, Left

M12	96
M20	40 ???New14???
M32	18
M50	6
M75	4

M16	64
M25	34
M40	14 ???New14???
M63	6

General Information

AF size 1	10 mm
Access opening: width	449 mm
Gland plates	Bottom, top, left, right
Material thickness	1.5 mm
Material thickness of flange	3 mm
Opening angle lid	130 °
Position PE bolts	Page C
Material	Stainless steel 1.4404 (316L)
Surface finish	electropolished
Operating temperature, max.	135 °C
Protection degree	IP66
Enclosure attachment	4 welded-on mounting feet with 11 mm holes (2 slotted feet and 2 cross-shaped feet)
Integral fixing	4, 6 or 9 stud bolts M6 inner (female) thread

Access opening: height	709 mm
Areas of use	Explosive risk zone, Process industry, Oil and gas industry, Chemical industry, Offshore, Onshore
Installation advice	Terminal rail / mounting plate
Material thickness of cover	1.5 mm
Max. payload	155 kg
Overall dimensions	784 x 589 x 210
Standards	DIN EN 62208 - Empty enclosure standard, DIN EN 61373 Class 1B**, DIN EN 15085-2, EN 60079-0, EN 60079-7, EN 60079-31, IEC 60079-0, IEC 60079-7, IEC 60079-31
Seal material	Silicone
Operating temperature, min.	-60 °C
Impact resistance	7 J ATEX version, 10 J version standard
Note: protection class	If used in temperature ranges above 105 °C, IP protection is limited to IP 66.
Lid attachment	Quarter-turn fastener with slotted insert

Certificate Numbers Enclosure

Certificate no. assembled enclosure (ATEX)	IBExU14ATEX1050
Certificate no. assembled enclosure (IECEx)	IECEXIBE14.0013
Certificate no., assembled enclosure (EAC)	RU C-DE.ГБ08.B.01328
Certificate no. assembled enclosure (INMETRO)	IEx 17.0021
Certificate no. assembled enclosure (AEx)	E223792
Certificate no. assembled enclosure (NEPSI)	GYJ14.1309
Certificate no. (cULus)	E243298

Certificate no. empty enclosure (ATEX)	IBExU14ATEX1028 U
Certificate no. empty enclosure (IECEx)	IECEx IBE 14.0004U
Certificate no., empty enclosure (EAC)	RU C-DE.ГБ08.B.00472
Certificate no. empty enclosure (INMETRO)	IEx 17.0020U
Certificate no. empty enclosure (NEPSI)	GYJ14.1308U
Certificate no., assembled enclosure (KOSHA)	16-AV4BO-0245X
