Weidmuller 1201020000 KTB QL 987420 S4E2

MPN: 1201020000
PPN: WDM-1201020000

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

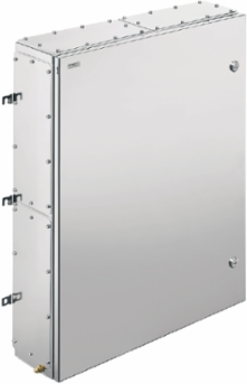

Klippon TB QL (Terminal Box - Quarter Lock), Empty enclosure, stainless steel enclosure, Height: 980 mm, Width: 740 mm, Depth: 200 mm, Gland plates: Bottom, top, Material: Stainless steel 1.4404 (316L), electropolished, silver

Documentation & Downloads

Specifications

Approvals

Approvals	CE, CULUS, DNV GL, IBEXUATEX, IECEXIBE, IECEXKEM, IECEXPTB, INMETRO, KEMAATEX, KOREANCERT, NEPSI, PTBATEX
UL File Number Search	E243298

ROHS	Conform

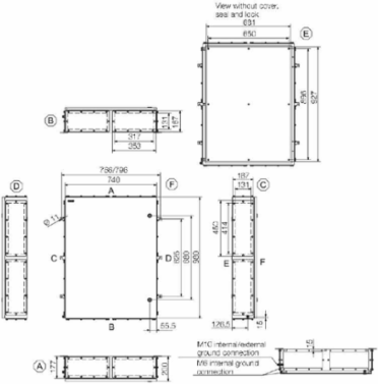

Dimensions And Weights

Width	740 mm
Height	980 mm
Depth	200 mm
Mounting dimension - width	766 mm
Net weight	35,590 g

Width (inches)	29.134 inch
Height (inches)	38.583 inch
Depth (inches)	7.874 inch
Mounting dimension - height	625 mm

Horizontal Assembly

WDU 10 / ZDU 10	6x64
WDU 2,5 / ZDU 2,5 / IDU 2,5	9x127
WDU 4 / ZDU 4	8x106

WDU 16 / ZDU 16	5x54
WDU 35 / ZDU 35	4x40
WDU 6 / ZDU 6	7x80

Housing Earth

Earth, enclosure, internal	Welded-on M6 stainless-steel earth stud in enclosure body and lid.

Classifications

ETIM 6.0	EC002503
eClass 9.0	27-18-05-02
eClass 10.0	27-18-05-02

ETIM 7.0	EC002503
eClass 9.1	27-18-05-02

Product Information

Product information	Minimum order quantity (5 pieces)**A customised test is required to guarantee application compliance

Environmental Product Compliance

REACH SVHC	Lead 7439-92-1

Vertical Assembly

WDU 10 / ZDU 10	4x88
WDU 2,5 / ZDU 2,5 / IDU 2,5	6x174
WDU 4 / ZDU 4	6x146

WDU 16 / ZDU 16	4x74
WDU 35 / ZDU 35	3x55
WDU 6 / ZDU 6	5x110

Cable Glands, Top/Bottom

M12	96
M20	42
M32	20
M50	6
M75	4

M16	64
M25	36
M40	16 ???New14???
M63	6

Cable Glands, Right

M12	126
M20	54
M32	26 ???New14???
M50	10
M75	6

M16	84
M25	48 ???New14???
M40	22
M63	8

Cable Glands, Left

M12	126
M20	54
M32	26 ???New14???
M50	10
M75	6

M16	84
M25	48 ???New14???
M40	22
M63	8

General Information

AF size 1	10 mm
Access opening: width	681 mm
Gland plates	Bottom, top
Material thickness	1.5 mm
Material thickness of flange	3 mm
Opening angle lid	130 °
Position PE bolts	Page C
Material	Stainless steel 1.4404 (316L)
Surface finish	electropolished
Operating temperature, max.	135 °C
Protection degree	IP66
Enclosure attachment	4 welded-on mounting feet with 11 mm holes (2 slotted feet and 2 cross-shaped feet)
Integral fixing	4, 6 or 9 stud bolts M6 inner (female) thread

Access opening: height	927 mm
Areas of use	Explosive risk zone, Process industry, Oil and gas industry, Chemical industry, Offshore, Onshore
Installation advice	Terminal rail / mounting plate
Material thickness of cover	1.5 mm
Max. payload	290 kg
Overall dimensions	1002 x 791 x 210
Standards	DIN EN 62208 - Empty enclosure standard, DIN EN 61373 Class 1B**, DIN EN 15085-2, EN 60079-0, EN 60079-7, EN 60079-31, IEC 60079-0, IEC 60079-7, IEC 60079-31
Seal material	Silicone
Operating temperature, min.	-60 °C
Impact resistance	7 J ATEX version, 10 J version standard
Note: protection class	If used in temperature ranges above 105 °C, IP protection is limited to IP 66.
Lid attachment	Quarter-turn fastener with slotted insert

Certificate Numbers Enclosure

Certificate no. assembled enclosure (ATEX)	IBExU14ATEX1050
Certificate no. assembled enclosure (IECEx)	IECEXIBE14.0013
Certificate no., assembled enclosure (EAC)	RU C-DE.ГБ08.B.01328
Certificate no. assembled enclosure (INMETRO)	IEx 17.0021
Certificate no. assembled enclosure (AEx)	E223792
Certificate no. assembled enclosure (NEPSI)	GYJ14.1309
Certificate no. (cULus)	E243298

Certificate no. empty enclosure (ATEX)	IBExU14ATEX1028 U
Certificate no. empty enclosure (IECEx)	IECEx IBE 14.0004U
Certificate no., empty enclosure (EAC)	RU C-DE.ГБ08.B.00472
Certificate no. empty enclosure (INMETRO)	IEx 17.0020U
Certificate no. empty enclosure (NEPSI)	GYJ14.1308U
Certificate no., assembled enclosure (KOSHA)	16-AV4BO-0245X
