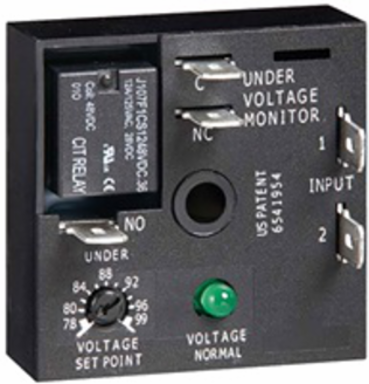

Littelfuse KVM6 KVM6 - KVM Series
- MPN: KVM6
- UPC: 079458995947
- PPN: LTF-KVM6
CAD
$162.08
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Operation The output relay is energized and the LED glows green when the input voltage is above the reset voltage threshold. If the input voltage drops below the undervoltage setpoint, the output relay and LED will de-energize. The output relay will remain de-energized as long as the input voltage is below the reset voltage. Reset is automatic when the input voltage returns to a normal range.
Documentation & Downloads
Specifications
Key Specifications
| Input Voltage (V) | 110 to 120VAC or 220 to 240VAC |
|---|---|
| Input AC Line Frequency (Hz) | 50/60Hz |
| Output Load Rating (VA) | 8A resistive @ 120VAC; 1/3hp @ 120/240VAC |
| Repeat Accuracy (%) | ±0.5% under fixed conditions; ±1% over temperature range |
| Undervoltage Sensing Range (V) | Undervoltage setpoint: 156 to 199VAC |
| Power Consumption | 2.5W @ 132VAC; 4.5W @ 264VAC |
| Insulation Resistance | ≥100 MΩ |
| Surge Protection | IEEE C62.41-1991 Level A |
| Life | Mechanical - 1 x 106; Electrical - 1 x 105 |
| Mounting Method | Surface mount with one #10 (M5 x 0.8) screw |
| Storage Temperature (F/C) | -40° to 85°C (-40°F to 185°F) |
| Dimensions | 2.00 x 2.00 x 1.21 in. (50.8 x 50.8 x 30.7mm) |
| Input Type | Single phase |
|---|---|
| Output Form | SPDT |
| Reset Time (ms) | Power off reset time ≤150ms |
| Undervoltage Reset Point (%) | Fixed at 209VAC |
| Voltage Sensing Accuracy (%) | ±2% at 25C |
| Indication | LED glows green when output is energized |
| Isolation Voltage (V) | ≥1500V RMS input to output |
| Circuitry | Encapsulated |
| Termination Type | 0.25 in. (6.35mm) male quick connect terminals |
| Operating Temperature | -25° to 55°C (-13°F to 131°F) |
| Humidity | 95% relative non-condensing |
| Weight (lbs/g) | 2.6oz (74g) |
