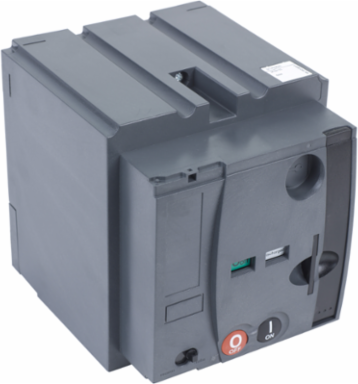

Square D S432643 PowerPacT L Circuit Breaker Motor Operator, 24-30VDC, Tightening Torque 1.4-2 Nm
- MPN: S432643
- UPC: 785901939788
- PPN: SCH-S432643
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
This is a control motor mechanism for PowerPacT L-Frame circuit breakers. This motor operator has a rated voltage of 24-30 VDC. This accessory has a control circuit voltage of 380VAC, 50 Hz, 415 VAC, 60 Hz. This product requires a tightening torque of 1.4-2 Nm. This product complies with UL and CSA standards.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- United States
Important Information Attributes
- Persona Type Ids
- LC, OM, OM8, PB
- Market Segmentation Id
- COMMERCIAL, INDUSTRIAL
- Certificate Agency
- CSA, UL Listed
- Local Data Status
- Publishable
- Return Indicator
- Y
- Stock Policy
- 2
- Traceability
- No
- Weee Scope
- In
- Scope Perimeter
- At least in Europe
- Rohs Eur In Scope
- Yes
- Rohs Eur Conformity Date
- 1807
- China Rohs In Scope
- No
- Without Single Use Plastic
- No
- Tier Id
- 1
- Function Option Id
- STANDARD
- Product Kit Identifier
- N
- Energy Efficiency Optimized
- False
- Product Or Component Type
- motor mechanism
- Returnability
- Yes
- Tightening Torque
- 1.4-2 N.m
- Nbr. Of Units In Pkg.
- 1
- Take-back
- No
- Customs Code
- 8501312000
Persona Type NamesContractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder
Market SegmentationCommercial, Industrial
[Uc] Control Circuit Voltage24 V DC, 30 V DC
Local Publishable Date2026-02-19
Stocking FlagY
ServiceabilityNo
Field Service DivisionPPIBS
Weee Product Category4
Eoli Availability DisplayNo need of specific recycling operations
Rohs Eur StatusCompliant
Rohs Eur Full Compliance StatusCompliant
With Recycled CardboardYes
Product Contributes To Saved And Avoided EmissionsNo
Tier1
Function OptionStandard
Device Applicationcontrol
Product AvailabilityNon-Stock - Not normally stocked in distribution facility
Range Of ProductPowerPact L
Sustainable PackagingNo
Weee LabelThe product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Package Weight(Lbs)2.268 kg
Warranty (In Months)18
Environment Attributes Main
- China Rohs Regulation
- Product out of China RoHS scope , Product out of China RoHS scope. Substance declaration for your information.
- Recycled Metal Content At Cr Level
- 0 %
- Eu Rohs Directive
- Compliant
- Packaging Without Single Use Plastic
- No
Take BackNo
Mercury FreeYes
Packaging Made With Recycled CardboardYes
General Attributes
- Product Or Component Type
- motor mechanism
Range Of ProductPowerPact L
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
