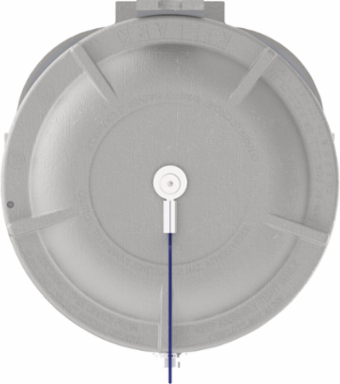

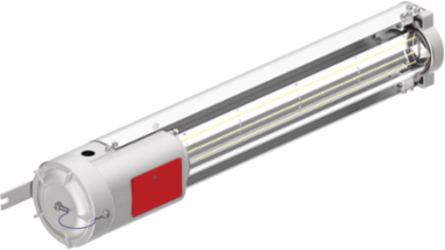

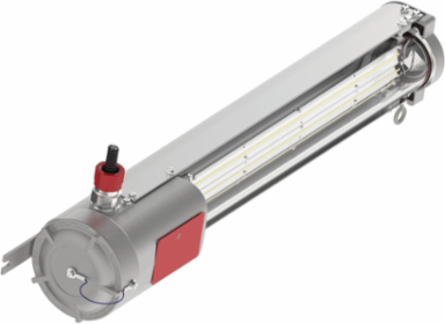

Killark L1L1430D 14,000 Lumen Linear LED Light Fixture, 120-277 VAC, 5000K, IP66

14,000 Lumen Linear LED Light Fixture, 120-277 VAC, 5000K, IP66
14,000 Lumen Linear LED Light Fixture, 120-277 VAC, 5000K, IP66
14,000 Lumen Linear LED Light Fixture, 120-277 VAC, 5000K, IP66
14,000 Lumen Linear LED Light Fixture, 120-277 VAC, 5000K, IP66
  • MPN: L1L1430D
  • UPC: 783936174686
  • PPN: HBL-L1L1430D

Spec sheet

Loading compare button...

In Stock

Company Stock:

00

Lead times may vary. For an accurate estimate please contact us.

Looking to buy a large quantity?

To view product inventory

Description

L1L Series 14,000 Lumen Output 5000K CCT, 120-277 Universal Voltage With Diffuse Glass Optic

Features

  • Tool-less access to wiring chamber

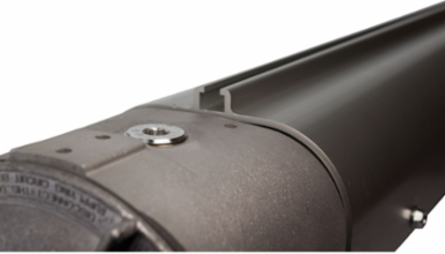

  • Slot-back design allows for a 5/16 or M8 bolt to be mounted anywhere along the back of the luminaire
  • High Efficacy up to 153 lumens per watt delivered
  • Corrosion resistant Copper-free housing
  • Standard supplemental 6KV surge protection
  • Optional supplementary surge protection available 20KA/10KV (120-277 VAC), 10KA/10KV (347-480 VAC)
  • The L1L Series Linear LED are high quality explosion-proof light fixtures. Designed to go into the harshest environments where explosive vapors are present. Killark linear LED provide a crisp white light that is great for color rendering.

Specifications

Specifications

ARRA Compliant
Contact Manufacturer
Hazardous Rating(s)
Class I, Divisions 1 & 2, Groups B, C, D;Class II, Divisions 1 & 2, Groups E, F, G;Class III, Divisions 1 & 2
IP Rating
IP66
Optic Type
Diffused Glass Lens
Color Temperature
5000 K
Mounting Type
Pendant or Surface
Wattage
91.8 W
Description - Invoice
L1L 14000L LED 120-277VAC DIF LENS
Harmonization Code
9405429100
MSDS Flag
No
Sub Class Code
A99
Lumens Per Watt
106.9
Material
Aluminum, Copper Free (less than 4/10 of 1%)
Base Unit of Measure
EA
Country of OriginUnited States
Hub Size3/4"
Lumens9816
Voltage Rating120-277 VAC
Finish TypeNatural
TypeLinear Light Fixture
Class CodeA99
Freight Class Code10970001
Image Actual Or RepresentativeA
Order Multiple1 EA
Lumen Range5,001-10,000 lm
Light SourceLED
SeriesL1L Series
Carton - SCC-14 Next Lower Level Sub Pack00783936174686

Certifications

EU RoHS Indicator
