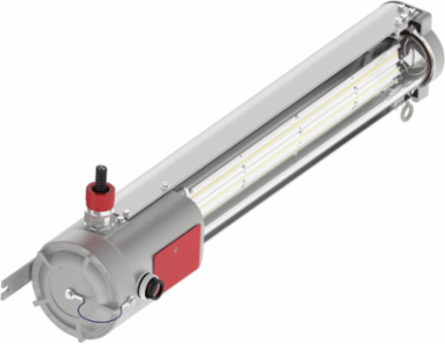

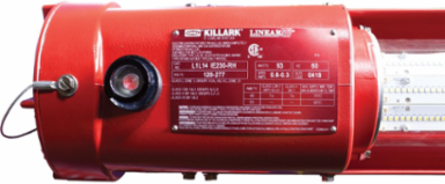

Killark L1L14IE130D 14,000 Lumen Linear Light Fixture, 91.8W, 5000K, IP66, Battery Backup
- MPN: L1L14IE130D
- UPC: 783936174723
- PPN: HBL-L1L14IE130D
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
L1L Series 14,000 Lumen Output 5000K CCT, 90 minute 1,000 lumen battery backup, 120-277 Universal Voltage With Diffuse Glass Optic
Features

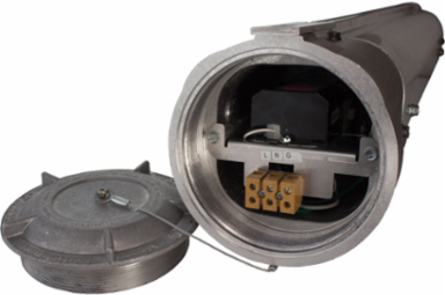

- Tool-less access to wiring chamber

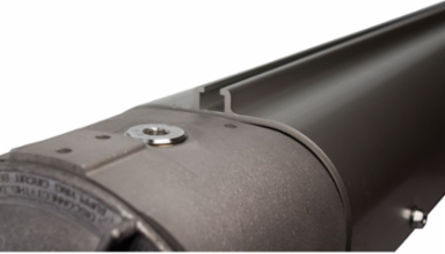

- Slot-back design allows for a 5/16 or M8 bolt to be mounted anywhere along the back of the luminaire
- High Efficacy up to 153 lumens per watt delivered
- Corrosion resistant Copper-free housing
- Standard supplemental 6KV surge protection
- Optional supplementary surge protection available 20KA/10KV (120-277 VAC), 10KA/10KV (347-480 VAC)
- 90 & 180 minute battery backup options
- Self-Testing per NFPA 101® Life Safety Code
- Self-diagnostics monitors emergency LED status, emergency LED driver circuit, battery capacity, and charger function
- Bright Colored LED provides visual fault detection and charging status
- The L1L Series Linear LED are high quality explosion-proof light fixtures. Designed to go into the harshest environments where explosive vapors are present. Killark linear LED provide a crisp white light that is great for color rendering with Intellegent Self-Testing and Self-Diagnosing battery backup.
Specifications
Key Specifications
| Country of Origin | United States |
|---|---|
| Hub Size | 3/4" |
| Lumens | 9816 |
| Voltage Rating | 120-277 VAC |
| Finish Type | Natural |
| Type | Linear Light Fixture |
| ARRA Compliant | Contact Manufacturer |
| Description - Invoice | L1L 14000L EMER 120-277VAC DIF LENS |
| Harmonization Code | 9405426000 |
| MSDS Flag | No |
| Sub Class Code | D20D201 |
| Lumens Per Watt | 106.9 |
| Material | Aluminum, Copper Free (less than 4/10 of 1%) |
| Base Unit of Measure | EA |
| Carton - SCC-14 Next Lower Level Sub Pack | 00783936174723 |
| Hazardous Rating(s) | Class I, Divisions 1 & 2, Groups B, C, D;Class II, Divisions 1 & 2, Groups E, F, G;Class III, Divisions 1 & 2 |
|---|---|
| IP Rating | IP66 |
| Optic Type | Diffused Glass Lens |
| Color Temperature | 5000 K |
| Mounting Type | Pendant or Surface |
| Wattage | 91.8 W |
| Class Code | D20 |
| Freight Class Code | 10970001 |
| Image Actual Or Representative | A |
| Order Multiple | 1 EA |
| Lumen Range | 5,001-10,000 lm |
| Light Source | LED |
| Series | L1L Series |
| BOX SIZE | (in) |
| NAICS Code | 3351222100 |
