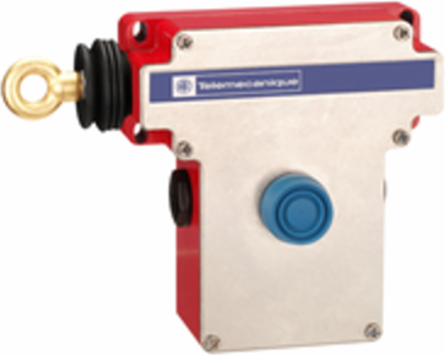

Telemecanique Sensors XY2CE6A270 Latching emergency stop rope pull switch, Telemecanique rope pull switches XY2C, simple reset by flush push button
Telemecanique Sensors XY2CE6A270 Latching emergency stop rope pull switch, Telemecanique rope pull switches XY2C, simple reset by flush push button
- MPN: XY2CE6A270
- PPN: TES-XY2CE6A270
- UNSPSC: 39122239
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$518.48/ EA
Description
Latching emergency stop rope pull switch, Telemecanique rope pull switches XY2C, simple reset by flush push button
Specifications
Environment
- Ambient Air Temperature For Operation
- -25-70 °C
- Product Certifications
- UL category NISD emergency stop devices || CSA || CCC
- Vibration Resistance
- 10 gn 10-300 Hz)EN/IEC 60068-2-6
- Ambient Air Temperature For Storage
- -40-70 °C
StandardsEN/IEC 60947-5-5 || work equipment directive 2009/104/EC || EN/IEC 60947-5-1 || EN/ISO 13850 || machinery directive 2006/42/EC || EN/IEC 60204-1 || UL 508 || CSA C22.2 No 14
Shock Resistance50 gn 11 ms EN/IEC 60068-2-27
Ip Degree Of ProtectionIP66 IEC 60529
Protective TreatmentTC
Contractual warranty
- Warranty
- 18 months
Offer Sustainability
- Rohs Exemption Information
- Yes
- Environmental Disclosure
- ENVPEP111159EN
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- Eu Rohs Directive
- Pro-active compliance (Product out of EU RoHS legal scope)
Mercury FreeYes
Sustainable Offer StatusGreen Premium product
California Proposition 65WARNING: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Complementary
- Reset
- by booted push-button
- Terminals Description Iso N°1
- (13-14)NO || (21-22)NC
- Positive Opening
- with EN/IEC 60947-5-1
- Marking
- CE
- Net Weight
- 1.45 kg
- Trigger Cable Maximum Length
- 70 m || 2 x 100 m
- Contacts Type And Composition
- 2 NC
- [Ie] Rated Operational Current
- 3 A 240 V, AC-15, A300 EN/IEC 60947-5-1 appendix A || 0.27 A 250 V, DC-13, Q300 EN/IEC 60947-5-1 appendix A
- Distance Between Cable Supports
- 5-5 m
- Cable Entry Number
- 3 tapped entry Pg 13.5 cable gland
- Body Material
- zamak
- Safety Reliability Data
- B10d = 300000 value given for a life time of 20 years limited by mechanical or contact wear IEC 60947-5-5
- Tightening Torque
- 0.8-1.2 N.m
- Safety Level
- can reach PL = e with the appropriate monitoring system and correctly wired EN/ISO 13849-1 || can reach category 4 with the appropriate monitoring system and correctly wired EN/ISO 13849-1 || can reach SIL 3 with the appropriate monitoring system and correctly wired EN/IEC 61508
Number Of Cables1
Short-Circuit Protection10 A cartridge fuse gG EN/IEC 60269
[Ithe] Conventional Enclosed Thermal Current10 A
Local Signallingwithout pilot light
[Uimp] Rated Impulse Withstand Voltage6 kV EN/IEC 60947-1
Connections - Terminalsscrew clamp terminal, 1 x 0.5...2 x 1.5 mm²
[Ui] Rated Insulation Voltage500 V 3)EN/IEC 60947-1 || 300 VUL 508 || 300 VCSA C22.2 No 14
Contact Operationsnap action
Mechanical Durability60000 cycles
Compatibility CodeXY2CE
Trigger Cable Anchor PointLH side
Cover Materialstainless steel
Maximum Resistance Across Terminals25 MOhm EN/IEC 60255-7 category 3 || 25 MOhm NF C 93-050 method A
Specifications
- Range Of Product
- Telemecanique Emergency stop rope pull switches XY2C
- Housing Colour
- red RAL 3000
- Device Short Name
- XY2CE
Product Or Component Typelatching emergency stop rope pull switch
Overvoltage Categoryclass I EN/IEC 61140 || class I NF C 20-030
