Thomas & Betts 373FT LB FEEDTHRU 35KV 200A
- MPN: 373FT
- UPC: 783786649488
- PPN: T-B-373FT
- UNSPSC: 26121630
CAD
$1719.27
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description

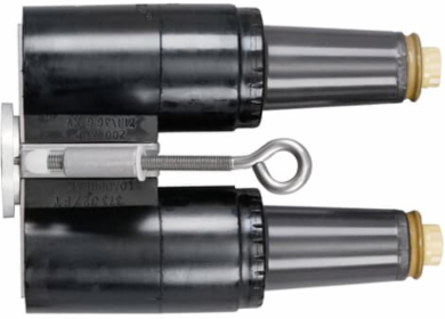

35kV 200 Amp, Loadbreak Feed-Thru
Specifications
Classifications
| WEEE Category | Product Not in WEEE Scope |
|---|
| IDEA Granular Category Code (IGCC) | 1779 >> Cable accessories |
|---|
Ordering
| Country of Origin | United States (US) |
|---|
| Selling Unit of Measure | each |
|---|
Additional Information
| Application | Fully shielded, fully submersible insulated connector designed for energized operation. It is suitable for use on 35kV class loadbreak systems. |
|---|---|
| Effective Date | 19980108 |
| Product Name | PRIMARY CABLE ACC. 200 SEP CON |
| Size | 4.00 inch (101.6 mm) Center to Center, 8.41 inch (213.6 mm) long, 6.77 inch (172.1 mm) wide |
| Standards | ANSI/IEEE 386 |
| Brand / Label | Elastimold |
|---|---|
| Material | EPDM Rubber |
| Product Type | 2-Point Junction |
| Special Functions | 35kV, 200 Amp Loadbreak Rated. Uses integral parking stand mount. Provide extra tap for elbow arrester connection. Peroxide-cured insulation and jacket. Rated for 3 Phase switching. Includes black vent ring. Optional accessories allow by-pass, isolation, testing and grounding. |
| Temperature Range | -40 to +65 °C |
