Thomas & Betts 274FTV LB VERTICAL FEED-THRU
- MPN: 274FTV
- UPC: 783786657889
- PPN: T-B-274FTV
- UNSPSC: 39121421
CAD
$1035.02
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description

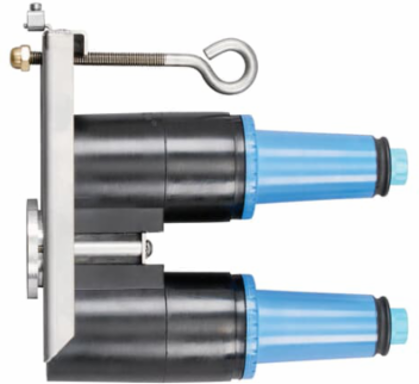

25kV 200 Amp, Loadbreak Feed-Thru Vertical
Specifications
Additional Information
- Application
- Vertical feed-thru is a space saving design for congested areas inside transformers or switchgear. Can be used to Isolate and Dead-end a Circuit.
- Color
- Black
- Effective Date
- 19980115
- Insulation Material
- Yes, EPDM Rubber
- Product Name
- PRIMARY CABLE ACC. 200 SEP CON
- Size
- 4 inch (101.6 mm) Center to Center, 6.63 inch (168.4 mm) width, 8.58 inch (218.0 mm) Height to Bushing Datum.
- Standards
- ANSI/IEEE Standard 386
Brand / LabelElastimold
Current Rating200 A
IncludesFeed-Thru Body, Protective Shipping Cap, Lubricant and Installation Instructions.
MaterialHousing - EPDM Rubber
Product TypeFeed-Thru
Special Functions28kV, 200 Amp Loadbreak Rated. Uses integrated parking stand to mount. Provide extra tap for elbow arrester connection. Peroxide-cured insulation and jacket. Space saving vertical mounting design for small spaces. Optional accessories allow by-pass, isolation, testing, and grounding.
Voltage Rating25 kV
Classifications
- WEEE Category
- Product Not in WEEE Scope
IDEA Granular Category Code (IGCC)4586 >> Electrical connector assembly
Ordering
- Country of Origin
- United States (US)
Selling Unit of Measureeach
