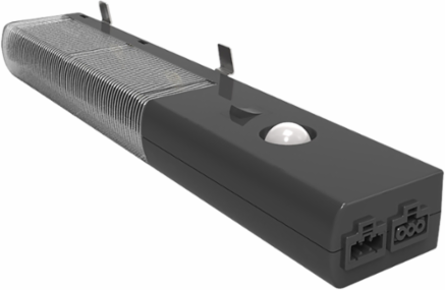

Schneider Electric NSYLAMLDD Multi-fixing LED lamp without socket - 230 V AC - 10W - presence detection
Schneider Electric NSYLAMLDD Multi-fixing LED lamp without socket - 230 V AC - 10W - presence detection
- MPN: NSYLAMLDD
- PPN: SCH-NSYLAMLDD
- UNSPSC: 39101612
Spec sheet
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To view product inventory
CAD$316.11/ EA
Description
This Multi-fixing LED lamp without socket, with built-in switch and presence detector have a power consumption of 10 W. The rated operational voltage is 120/230 V AC 50/60 Hz. The luminosity of the light is 950 lm, the light temperature is 4000 K and the LED service life is 25000 hours. The casing is made of UL94 V-0 plastic, the lamp have an IP20 resistance to water and dust and is class II electrical insulated. The dimensions of the lamp are (L) 372 mm x (W) 40 mm x (H) 63 mm. It can be fixed on brackets, DIN rails or metal parts with magnetic fixing, screws fixing or clip-in fixing. The fixing elements are delivered with the lamp. The electrical connection can be done by cable quick connector 3 m or cable quick connector 1 m, that are not supplied. The storage temperature is -10 °C to 60 °C and the operating temperature is -16 °C to 65 °C. The lamp is UL 508 A, IEC 60598, UL 8750, UL 1598, EN 55015 and UL 94 certified.
Features
- AC network lamp with 120/230 V AC 50/60 Hz rated operational voltage
- High luminosity of 950 lumen
- Pleasant light temperature of 4000 K
- Very long service life of 25000 hours
- Total electrical insulation (Class II) to avoid electric risks
- Presence detector and built-in switch
- Magnetic, screw or clip-in fixing
Specifications
Physical Attributes
- Color
- Black RAL 9005)
Conformance Attributes
- Standards
- UL 508 A, IEC 60598, UL 8750, UL 1598, EN 55015, UL 94
Complementary Attributes
- Rated Lamp Wattage
- 10 W
Important Information Attributes
- Persona Type Ids
- LC, OM, OM8, PB, SI
- Market Segmentation Id
- COMMERCIAL, INDUSTRIAL
- Control Type
- built-it switch, movement sensor
- Electrical Connection
- cable quick connector 3 m not supplied, cable quick connector 1 m not supplied
- Mounting Support
- bracket, metal parts, DIN rail
- Carbon Footprint Of The End Of Life Phase C1 To C4
- 1 kg CO2 eq., 1.3478446479422135
- Carbon Footprint Of The Manufacturing Phase A1 To A3
- 8 kg CO2 eq., 7.630913422435795
- Local Data Status
- Publishable
- Legacy WEEE Scope
- In
- EOLI Availability Display
- Yes
- Reach Full Compliance Status
- Free of Substances of Very High Concern above the threshold
- Reach Compliance Directive
- Free of Substances of Very High Concern above the threshold
- ROHS EUR Status
- Compliant
- ROHS EUR Full Compliance Status Id
- COMPLIANT
- Green Premium Status For Reporting
- Green Premium product
- Without Single Use Plastic
- No
- Return Indicator
- N
- Function Option
- Standard
- Device Application
- multi-purpose
- Electromagnetic Compatibility
- EMC immunity EN 55015
- Package Weight Lbs
- 816.000 g
- Product Or Component Type
- lamp
- Returnability
- No
- Sustainable Packaging
- No
- Weee Label
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
- Accessory Separate Part Category2
- lighting accessory
- Stocking Flag
- Y
- Pep Code
- ENVPEP2202002EN
- Pep Verification Date
- 2025-08-05
- Psr Version
- PSR-0014-ed2-EN-2023 07 13
- Data Source
- extrapolated product
- Functional Unit Unit
- unit
- Energy Model Installation A5 2
- No energy used
- Energy Model End Of Life C1 C4 2
- Global, European and French datasets are used.
- Luminous Flux
- 950 lm
- Global Commercial Status
- Commercialised
Persona Type NamesContractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, System Integrator
Market SegmentationCommercial, Industrial
Device Composition1 lamp, 1 fixing elements
Fixing Modemagnetic fixing, clip-in, screws
Carbon Footprint Of The Distribution Phase A40.15864002157942828, 0.2 kg CO2 eq.
Carbon Footprint Of The Installation Phase A50.1943735048997519, 0.2 kg CO2 eq.
Carbon Footprint Of The Use Phase B2 B3 B4 B651 kg CO2 eq., 50.89865432086336
Local Publishable Date2025-07-10
Scope PerimeterAt least in Europe
End Of Life Doc RefENVEOLI2202002EN
Reach Full Compliance Status IdNOT_CONTAINING_SVHC
ROHS EUR In ScopeYes
ROHS EUR Full Compliance StatusCompliant
China ROHS In ScopeNo
With Recycled CardboardNo
Product Contributes To Saved And Avoided EmissionsNo
Function Option IdSTANDARD
Bulb Baseintegral LED
Electrical Insulation Classclass II
MaterialPC (UL94 V-0)
Product AvailabilityNon-Stock - Not normally stocked in distribution facility
Range Of ProductLighting and power sockets
Service Life In Hours25000 h
Total Lifecycle Carbon Footprint60 kg CO2 eq.
Ue Rated Operational Voltage2120/230 V AC 50/60 Hz
Medium DescMulti-fixing LED lamp without socket - 230 V AC - 10W - presence detection
Product Kit IdentifierN
Database Version2024-01
Pcr VersionPEP-PCR-ed4-2021 09 06
Type Of Verification For The PepIndependent internal review
Functional Unit DescriptionThe main function of the product is to Provide lighting that delivers an outgoing artificial luminous flux of 1000* lumens during a reference lifetime of 35000* hours while protecting against penetration of solid objects and liquids (IP20 - IEC 60529) as per standard IEC 60598.
Energy Model Manufacturing A1 A3 2Electricity Mix; Low voltage; 2020; China, CN
Energy Model Use B6 2Electricity Mix; Low voltage; 2020; Europe, EU-27
Bulb TypeLED
Outlet Standard Deviationwithout socket
Ue Rated Operational Voltage5120/230 V AC 50/60 Hz
Environment Attributes Main
- Take Back
- No, Nej
- EU ROHS Directive
- Compliant , Compliant
- Reach Free SHVC
- Yes
- Toxic Heavy Metal Free
- Yes
- Carbon Footprint
- 60.230425917720545
- Ambient Air Temperature For Storage
- -10-60 °C
- Environmental Disclosure
- ENVPEP2202002EN
- Packaging Made With Recycled Cardboard
- No
- Reach Free Of SVHC
- Yes
- Pep Code
- ENVPEP2202002EN
- Pcr Version
- PEP-PCR-ed4-2021 09 06
- Type Of Verification For The Pep
- Independent internal review
China ROHS RegulationProduct out of China RoHS scope , Pro-active China RoHS declaration (out of China RoHS legal scope)
ROHS Exemption InformationYes
Recycled Metal Content At Cr Level0 %
Mercury FreeYes
Ambient Air Temperature For Operation-16-65 °C
Circularity ProfileENVEOLI2202002EN
IP Degree Of ProtectionIP20 conforming to IEC 60529
Packaging Without Single Use PlasticNo
Reach RegulationFree of Substances of Very High Concern above the threshold
Pep Verification Date2025-08-05
Psr VersionPSR-0014-ed2-EN-2023 07 13
General Attributes
- Product Or Component Type
- lamp
Range Of ProductLighting and power sockets
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
