Leviton 430B9WLEV LEV Series IEC Pin & Sleeve Inlet, 30/32 Amp, 250 Volt, IP66/IP67/IP68/IP69K
Leviton 430B9WLEV LEV Series IEC Pin & Sleeve Inlet, 30/32 Amp, 250 Volt, IP66/IP67/IP68/IP69K
- MPN: 430B9WLEV
- UPC: 078477921463
- PPN: LEV-430B9WLEV
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$370.98/ EA
Description

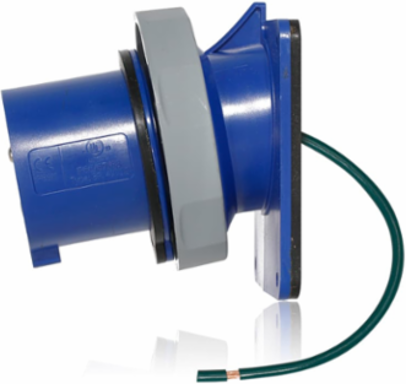

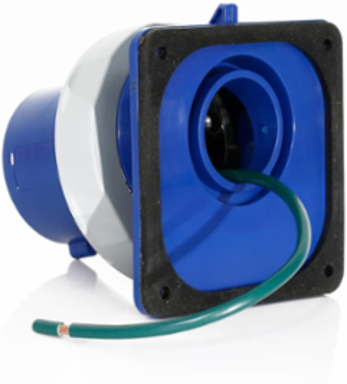

30/32 Amp, 250 Volt 3-Phase, 3P, 4W, LEV Series North American-Rated IEC 60309-1 & 60309-2 Pin & Sleeve Inlet, Industrial Grade, IP66/IP67/IP68/IP69K, Watertight - Blue
Features
- LEV Series IEC Pin & Sleeve Devices are designed to simplify your installation, endure the harshest environments and improve safety and productivity:
- Nickel-plated pins and sleeves are self-cleaning and corrosion-resistant
- Superior watertight ratings including IP69K for washdown/outdoor applications and industry exclusive IP68 for long-term submersion
- NSF certified sanitary design trusted for use in food & beverage facilities Leviton Pin & Sleeve devices are UL listed components and suitable for use in prefabricated wiring assemblies when wired in accordance with UL1007.
Specifications
Standards and Certifications
- CE
- CE certification
- IEC Rating
- 60309-1, 60309-2
- RoHS
- RoHS compliant components
CSACSA C22.2 No 182.1-13 (Harmonized with UL 1682)
NOMNOM –ANCE standards
ULUL 1686 C2, UL 1682, UL Classified to IEC 60309-1, 60309-2
Material Specifications
- Assembly Screws
- 303 Stainless Steel
- Grommet/Gasket
- NBR/Buna N
- Terminal Screws
- 303 Stainless Steel
Contact CarrierGlass filled Nylon
HousingPBT
Mechanical Specifications
- Cable Clamp Screw Torque
- 10 in-lb
- Contact Carrier Assembly Screw Torque
- 8 in-lb
- Hardware Head Type
- Hex style socket screws for terminals, combination screws for all others
- Screw Terminal Torque
- 20 in-lb
Conductor Range#10 AWG to #8 AWG
Crush Test250 lbs for 1 min after -25°C for 6 hrs
ImpactDrop from 30" 8 times after conditioning to -25°C, for 6 hours; Drop from 72" after conditioning to -35°C, for 6 hours
Specifications
- Country of Origin
- Mexico
RoHS CompliantFalse
Product Features

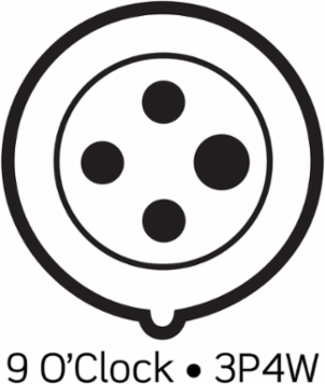

- Clock Position
- 9 o'clock
- Configuration
- North American
- Product Markings
- Brand, UL, CE and environmental ratings molded in. Item number, ampacity, voltage, phases, HP, NSF on label. IEC 60309-1, -2 Dual Ratings on separate label.
ColorBlue
Device TypeInlet
SeriesLEV Series
Warranty
- Warranty
- 5-Year Limited
Environmental Specifications
- Corrosion Resistance
- Salt fog tested
- IP Rating
- IP66, IP67, IP68, IP69K
- NSF
- 14159-1, Hygenic Requirement for the Design of Meat & Poultry Processing Equipment
FlammabilityRated V-0 (Contact Carrier), HB or better (Housing) per UL94
NEMA Enclosure Type3R, 4X, 6P and 12
UV ResistanceUV stabilized F1 rated housings
Electrical Specifications
- Amperage
- 30/32 A
- Dielectric Voltage
- 3000V for 1 min.
- Horsepower Rating
- 3 HP
- Overload UL20 Test
- 150% of rated current and 100% of rated voltage for 250 cycles
- Pole
- 3
- Temperature Rise
- Max 30°C rise at full rated current (after overload)
- Wire
- 4
Current InterruptingCertified for current interrupting at full-rated current and voltage
Endurance2000 cycles total - 1000 cycles at Rated Current Voltage, 1000 cycles at no load
Max. Voltage600V
Phase3-Phase
SCCR200kA
Voltage250 VAC
