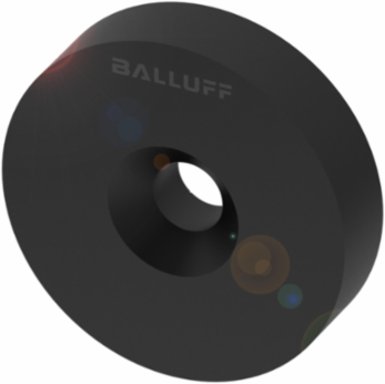

Balluff BIS C-128-05/L-PR LF data carriers (70/455 kHz) BIS C-128-05/L-PR
- MPN: BIS C-128-05/L-PR
- PPN: BAL-BIS001A
CAD
$150.67
/ EA
Available to Order from Manufacturer
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
BIS C works with low frequency (LF) and uses two frequencies: 455 kHz for writing and 70 kHz for reading. The wide variety of passive data carriers with various dimensions, configurations, memory sizes, operating temperatures, materials, mounting options and ranges allows you to tackle nearly any technical task. BIS C established as the standard for tool identification.
Documentation & Downloads
Specifications
Key Specifications
| Product Group | LF (70/455 kHz) |
|---|---|
| Antenna type | round |
| User data, read/write | 1023 Byte |
| Storage temperature temporary | 120 °C 1x700 h |
| Housing material | Epoxy-resin/fiberglass |
| Installation | metal-free (clear zone) |
| Dimension | Ø 26 x 6 mm |
|---|---|
| Memory type | EEPROM |
| Storage temperature | -30-85 °C |
| Ambient temperature | -30-70 °C |
| IP rating | IP68 |
| Approval/Conformity | CE, cULus, WEEE |
