Square D

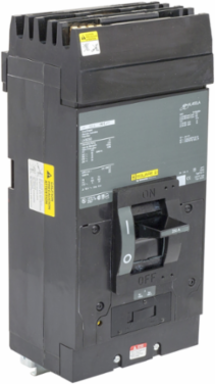

Square D LH36250 250A 3-Pole Circuit Breaker, 600VAC, Thermal-Magnetic, I-Line

  • MPN: LH36250
  • UPC: 785901339403
  • PPN: SCH-LH36250
  • UNSPSC: 39121601
Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Description

Engineered for effectiveness in power distribution, this 250A 3-Pole Circuit Breaker from Schneider Electric combines thermal and magnetic protection within a durable molded case design. Rated for 600VAC, it plays a crucial role in safeguarding electrical systems, ensuring reliable operation even under variable load conditions. Its I-Line configuration offers a streamlined installation process and compatibility with a range of applications, making it an essential component for modern electrical panels. This circuit breaker is a dependable choice for maintaining optimal safety and performance in diverse operational environments.

Features

  • Protects electrical systems from damage caused by overloads, short circuits, and ground faults
  • Provides a means to manually open a circuit
  • Automatically opens a circuit under overload or short circuit conditions
  • Equipped with Push-To-Trip allows the circuit breaker to be manually tripped without exposure to live parts
  • Reliable protection for enclosures, panelboards, switchboards, starters & motor control centers

Documentation & Downloads

Specifications

Key Specifications

Country of OriginMexico, United States
Depth4 in
Weight7711 g

Complementary Attributes

Line Rated Current250 A

Important Information Attributes

Persona Type IdsLC, OM8, PB
Market Segmentation IdCOMMERCIAL, INDUSTRIAL
Certificate AgencyUL Listed, CSA
Carbon Footprint Of The End Of Life Phase C1 To C412 kg CO2 eq., 11.67639778652332
Carbon Footprint Of The Manufacturing Phase A1 To A350 kg CO2 eq., 49.671357924070975
Local Data StatusPublishable
Return IndicatorY
ServiceabilityNo
Field Service DivisionPPIBS
Weee ScopeIn
Scope PerimeterAt least in Europe
End Of Life Doc RefENVEOLI2206029_V2
Reach Full Compliance Status IdCONTAINS_SVHC
Rohs Eur In ScopeYes
Rohs Eur Conformity Date1906
China Rohs In ScopeYes
With Recycled CardboardYes
Product Contributes To Saved And Avoided EmissionsNo
Tier2
Function OptionStandard
Circuit Breaker ApplicationHACR rated
Energy Efficiency OptimizedFalse
Magnetic Tripping Current2500-2500 A
Number Of Poles3P
Product Or Component Typecircuit breaker
Software Versionv6.2.5-6
Terminal IdentifierAL400LA
Trip Unit Technologythermal-magnetic
Database Version2024-01
Height Nominal12.5 in
Nbr. Of Units In Pkg.1
Halogen Free StatusHalogen free plastic parts product
Functional Unit DescriptionProtect the installation from overloads and short circuits in a circuit with rated voltage Ue, rated current In, with Np poles, a rated breaking capacity Icu, and, if applicable, the specific specifications, in the Industrial application area, according to the appropriate use scenario, and during the reference service life of the product of 20 years.
Functional Unit Unitunit
Recyclability Potential In %58
Persona Type NamesContractor, OEM - Control Panelbuilder, Panel Builder
Market SegmentationCommercial, Industrial
Carbon Footprint Of The Distribution Phase A42.228383327123949, 2 kg CO2 eq.
Carbon Footprint Of The Installation Phase A52.1496401101385745, 2 kg CO2 eq.
Carbon Footprint Of The Use Phase B2 B3 B4 B6739 kg CO2 eq., 739.3949682892573
Local Publishable Date2026-09-05
Device TypeLV equipment - Low voltage circuit breaker
TraceabilityYes
Average Life Duration15 year(s)
Weee Product Category5
Eoli Availability DisplayYes
Reach Full Compliance StatusReference contains Substances of Very High Concern above the threshold
Reach Compliance DirectiveReference contains Substances of Very High Concern above the threshold
Rohs Eur StatusCompliant By Exemption
Rohs Eur Full Compliance StatusCompliant By Exemption
China Rohs Label7
Without Single Use PlasticYes
Tier Id2
Function Option IdSTANDARD
Product Kit IdentifierN
Electrical Connectionlugs, loadI-Line connection, line
Magnetic Hold Current1250 A
Mounting ModeI-Line
Product AvailabilityStock - Normally stocked in distribution facility
ReturnabilityYes
Sustainable PackagingYes
Total Lifecycle Carbon Footprint805 kg CO2 eq.
Weee LabelThe product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Data Sourceextrapolated product
Width Nominal6 in
Customs Code8536200020
Warranty In Months18
Functional Unit Quantity1
Reference Lifetime In Y20

Environment Attributes Main

Take BackNo
Recycled Metal Content At Cr Level0 %
Mercury FreeYes
Circularity ProfileENVEOLI2206029_V2
Eu Rohs DirectiveCompliant By Exemption
Packaging Made With Recycled CardboardYes
Reach RegulationReference contains Substances of Very High Concern above the threshold
Pep Verification Date2028-06-22
Psr VersionPSR-0005-ed3.1-EN-2023 12 08
Halogene PerformanceHalogen free plastic parts product
China Rohs RegulationX
Carbon Footprint805.1207474371142
Environmental DisclosureENVPEP2206029EN
Halogen Content PerformanceHalogen free plastic parts product
Packaging Without Single Use PlasticYes
Pep CodeENVPEP2206029EN
Pcr VersionPEP-PCR-ed4-2021 09 06
Type Of Verification For The PepIndependent external review

General Attributes

Product Or Component Typecircuit breaker

Contractual Warranty Attributes

Warranty18 months
250A 3-Pole Circuit Breaker, 600VAC, Thermal-Magnetic, I-Line
