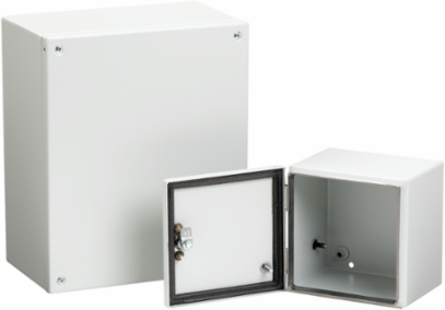

Nvent Hoffman LHC201512EMC InLine EMC Enclosure Hinge Cover 200x150x120mm Mild Steel, NEMA Type 1
Nvent Hoffman LHC201512EMC InLine EMC Enclosure Hinge Cover 200x150x120mm Mild Steel, NEMA Type 1
- MPN: LHC201512EMC
- UPC: 783510300791
- PPN: HOF-LHC201512EMC
- UNSPSC: 39121324
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$634.31/ EA
Description
Whether protecting components from a signal or containing a signal, InLine EMC Enclosures have you protected. This InLine EMC Enclosure Hinge Cover Type 1, LHC201512EMC Enclosure item measures 200x150x120mm with a material of Steel colored Lt Gray.
Features
- Seams continuously welded and ground smooth
- External formed body flange channels away liquids
- Large perimeter body opening
- Mounting holes in back of body for direct mounting or optional external mounting brackets
- Bonding provision on cover and body
- Metalized non-woven fabric EMI/RFI material covering UL94HP-rated urethane foam gasket
- Plated interior surfaces for gasket contact areas and conduit entries
- Hardware kit includes panel mounting screws, grounding hardware and sealing washers for wall-mounting holes
- Installation instructions
- Shielding effectiveness greater than 50 dB at 1 GHz
- INLINE EMC Screw-Cover Enclosures:
- Captivated cover screws with sealing bushings
- Integral gasket compression stops
- INLINE EMC Hinged-Door Enclosures:
- Door opens 180 degrees
- Removable hinged door
- Self-grounding, slotted quarter-turn latch
- Finish: Textured RAL 7035 light-gray polyester powder paint inside and out over a plated interior
- Shielding effectiveness tested in accordance with: IEEE 299, VG 95-373 part 15, MIL-STD-285
Specifications
Specifications
- BABA
- Contact Manufacturer
- Width (W)
- 150
- Protection Rating
- NEMA Type 1
- Finish
- Powder Coated
- Thickness (T)
- 1.5
- IP Rating
- IP54
- Weight
- 4.7
- Material
- Steel
- Color
- LtGray
Height (H)200
Depth (D)120
Product FamilyInLine
Color CodeRAL 7035
Mounting (G x H)182 x 85
NEMA Rating1 Indoor, electrical protection
Sub BrandInLine
Size200x150x120mm
