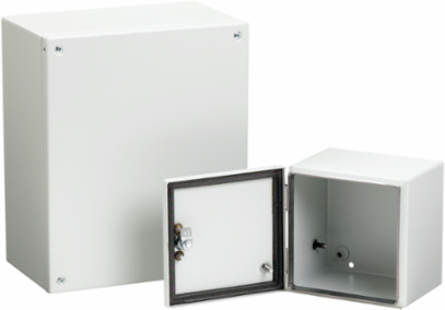

Nvent Hoffman LHC353020EMC InLine EMC Enclosure Hinge Cover 350x300x200mm, Light Gray, Steel

InLine EMC Enclosure Hinge Cover 350x300x200mm, Light Gray, Steel
  • MPN: LHC353020EMC
  • UPC: 783510301095
  • PPN: HOF-LHC353020EMC
  • UNSPSC: 39121324

Spec sheet

Loading compare button...

In Stock

Company Stock:

00

Lead times may vary. For an accurate estimate please contact us.

Looking to buy a large quantity?

To view product inventory

CAD$1220.15/ EA

Description

Whether protecting components from a signal or containing a signal, InLine EMC Enclosures have you protected. This InLine EMC Enclosure Hinge Cover Type 1, LHC353020EMC Enclosure item measures 350x300x200mm with a material of Steel colored Lt Gray.

Features

  • Seams continuously welded and ground smooth
  • External formed body flange channels away liquids
  • Large perimeter body opening
  • Mounting holes in back of body for direct mounting or optional external mounting brackets
  • Bonding provision on cover and body
  • Metalized non-woven fabric EMI/RFI material covering UL94HP-rated urethane foam gasket
  • Plated interior surfaces for gasket contact areas and conduit entries
  • Hardware kit includes panel mounting screws, grounding hardware and sealing washers for wall-mounting holes
  • Installation instructions
  • Shielding effectiveness greater than 50 dB at 1 GHz
  • INLINE EMC Screw-Cover Enclosures:
  • Captivated cover screws with sealing bushings
  • Integral gasket compression stops
  • INLINE EMC Hinged-Door Enclosures:
  • Door opens 180 degrees
  • Removable hinged door
  • Self-grounding, slotted quarter-turn latch
  • Finish: Textured RAL 7035 light-gray polyester powder paint inside and out over a plated interior
  • Shielding effectiveness tested in accordance with: IEEE 299, VG 95-373 part 15, MIL-STD-285

Specifications

Specifications

BABA
Contact Manufacturer
Width (W)
300
Protection Rating
NEMA Type 1
Finish
Powder Coated
Thickness (T)
1.5
IP Rating
IP54
Sub Brand
InLine
Size
350x300x200mm
NEMA Rating
1 Indoor, electrical protection
Height (H)350
Depth (D)200
Product FamilyInLine
Color CodeRAL 7035
Mounting (G x H)332 x 235
Weight13.4
MaterialSteel
ColorLtGray
