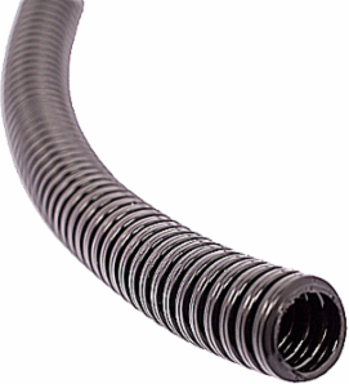

Harnessflex CTPA16/100M Lightweight Conduit
Harnessflex CTPA16/100M Lightweight Conduit
- MPN: CTPA16/100M
- UPC: 5020963021398
- PPN: T-B-CTPA16/100M
Spec sheet
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$506.25/ EA
Description
Lightweight Weight, Extra Flexible Conduit, NC Size 16/NW Size 13, Outside Diameter 16.0mm, Inside Diameter 11.8mm, Static Bend Radius 35mm, High Fatigue Life and Abrasion, Impact Resistance, IP40 Rating, Polyamide 6, Reel Length 100 Meters, Black
Specifications
North American Specifications (UNSPSC)
- UNSPSC
- 39131706 Electrical conduit
- Brand Name
- Harnessflex
- Special Features
- Self Extinguishing, Low Smoke Toxicity & Halogen Free
- Standard
- RoHS, Conforms with end of life vehicle directive (ELV)EU200/53/EC
- Outside Diameter
- 16.0mm
- Length
- 100 m
- Flexibility
- High
- Color
- Black
IGCC5540 Flexible Non-Metallic Conduit
TypeLightweight Conduit
ApplicationGeneral Purpose, Lightweight Loom Applications
Trade SizeNC16/NW13
Inside Diameter11.8mm
RadiusStatic Bend Radius 35mm
MaterialPolyamide/Nylon 6
European Specifications (ETIM)
- ETIM
- EC001175 Corrugated plastic hose
- Nominal size in inch
- 3/8 inch
- Inner diameter
- 11.8mm
- Operating temperature
- -40-+120°C
- Fire resistance in accordance with UL94
- HB
- Colour
- Black
- Bending strength
- Flexible
- Halogen free
- Y
Nominal diameter16mm
Outer diameter16mm
MaterialPolyamide 6
Degree of protection (IP)IP40
UV resistantY
Sheathing materialNot sheathed
Lengthwise slottedN
Packaging
- Outer Quantity
- 1
- Weight Uom
- 6.23 lbs. Each
Outer Dimensions (inches)1x1x1
