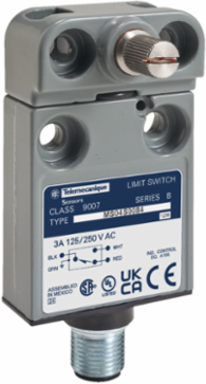

Telemecanique Sensors 9007MS04G0054 Limit switch, 9007, ms rotary spring rtn. _ CW & CCW, M12 DC bottom
- MPN: 9007MS04G0054
- UPC: 785901155799
- PPN: TES-9007MS04G0054
- UNSPSC: 39122213
CAD
$433.23
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
Limit switch, 9007, ms rotary spring rtn. _ CW & CCW, M12 DC bottom
Documentation & Downloads
Specifications
Key Specifications
| Series Name | miniature potted |
|---|---|
| Body Type | fixed |
| Sensor Design | miniature |
| Material | metal |
| Number Of Poles | 1 |
| Range Of Product | 9007 |
|---|---|
| Body Material | cast zinc |
| Product Or Component Type | limit switch |
| Device Short Name | 9007MS/ML |
| Head Type | rotary head |
Complementary
| Switch Actuation | CW and CCW || from left and right |
|---|---|
| Type Of Approach | lateral approach, 2 directions |
| Height | 2.49-2.49 in |
| Sale Per Indivisible Quantity | 1 |
| [Ui] Rated Insulation Voltage | 300 V 3)UL 508 || 300 V 3)CSA C22.2 No 14 |
| Tripping Angle | 40 ° |
| [Ie] Rated Operational Current | 100 mA 125 V AC || 30 mA 28 V DC |
| Contacts Material | gold flashed contacts |
| Maximum Actuation Speed | 130 ft/min with 30° cam angle, levers only || 90 ft/min with 45° cam angle, levers only |
| [Ithe] Conventional Enclosed Thermal Current | 10 A |
| Switch Function | SPDT |
| Marking | UL || CE || CSA |
| Depth | 0.62 in |
| Electrical Durability | 100000 cycles |
| Maximum Displacement Angle | 70 ° |
|---|---|
| Contacts Type And Composition | NC-NO |
| Movement Of Operating Head | rotary |
| Terminals Description Iso N°1 | (3-4)NC || (1)gnd || (2-4)NO |
| Positive Opening | without |
| Contact Operation | snap action |
| Fixing Mode | by the body |
| Mechanical Durability | 10000000 cycles |
| Type Of Operator | spring return without operating lever - |
| Contact Form | Form C |
| Electrical Connection | male connector M12 micro DC type 4 pins bottom |
| Width | 1.56 in |
| Minimum Torque For Tripping | 48 ozf.in |
| Net Weight | 1.2 lb(US) |
Environment
| Product Certifications | UL || CE || CSA |
|---|---|
| Ambient Air Temperature For Storage | -40-220 °F |
| Nema Degree Of Protection | NEMA 1 Nema type 250 || NEMA 2 Nema type 250 || NEMA 4 Nema type 250 || NEMA 6 Nema type 250 || NEMA 6P Nema type 250 |
| Vibration Resistance | 10 gn 75-1200 Hz)IEC 60529 |
| Ip Degree Of Protection | IP67 IEC 60529 |
| Ambient Air Temperature For Operation | -40-220 °F |
|---|---|
| Standards | LR 25490 Class 32 11 03 || E78403 |
| Shock Resistance | 35 gn 9 ms IEC 60068-2-27 |
| Protective Treatment | epoxy powder coat |
Contractual warranty
| Warranty | 18 months |
|---|
Offer Sustainability
| Environmental Disclosure | ENVPEP111160EN |
|---|---|
| Reach Regulation | Reference contains Substances of Very High Concern above the threshold |
| Eu Rohs Directive | Not applicable, out of EU RoHS legal scope |
|---|
