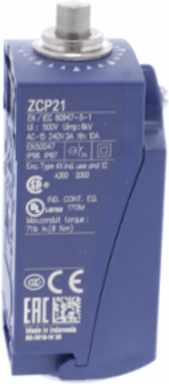

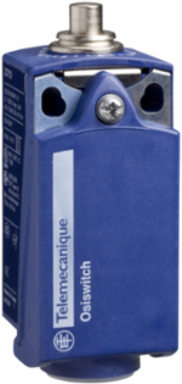

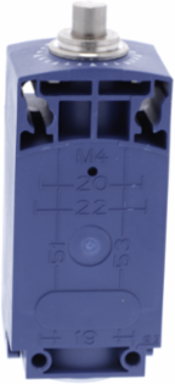

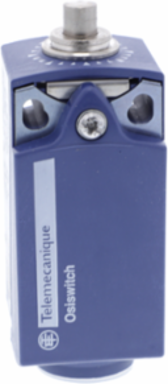

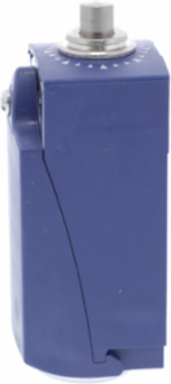

Telemecanique Sensors XCKP2110P16 Limit switch, Limit switches XC Standard, XCKP, metal end plunger, 1NC+1 NO, snap, M16
- MPN: XCKP2110P16
- PPN: TES-XCKP2110P16
CAD
$49.17
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
This XCKP compact format (CENELEC EN 50047) limit switch has a metal end plunger and a plastic body. This limit switch has a double insulated thermoplastic body, a modular design allowing easier maintenance and a compact CENELEC EN50047 format. It is IP66 and IK04 impact resistant, making it ideal for heavy duty use in harsh conditions. It is fixed on the machine by its body, and has a typical 5 million cycles electrical durability in DC-13 utilization category. It complies with CCC, EN/IEC 60947.-5-1, CSA C22.2 No.14, EN/IEC 60204-1, UL 508 standards. Compatible with the well distributed range of common XCK heads, allowing quick replacement in case of damage. Variable composition design allows late modifications on the switch, for example change of connection type or head.
Documentation & Downloads
Specifications
Key Specifications
- Movement Of Operating Head
- linear
- Fixing Mode
- by the body
- Sensor Design
- compact form B CENELEC EN 50047
- Head Material
- zamak
- Head Type
- plunger head
- Series Name
- standard format
- Body Type
- fixed
- Body Material
- plastic
- Number Of Poles
- 2
Range Of ProductTelemecanique Limit switches XC Standard
Type Of Operatorspring return plunger metal
Product Or Component Typelimit switch
Materialplastic
Type Of Approachvertical approach, 1 direction
Contacts Type And Composition1 NC + 1 NO
Contact Operationsnap action
Device Short NameXCKP
Complementary
- Height
- 65-65 mm
- Short-Circuit Protection
- 10 A cartridge fuse gG
- Electrical Connection
- screw-clamp terminals 1 x 0.34...2 x 1.5 mm²
- Net Weight
- 0.09 kg
- Switch Actuation
- on end
- Electrical Durability
- 5000000 cycles, DC-13, 120 V, 4 W 60 cyc/mn 0.5 IEC 60947-5-1 appendix C || 5000000 cycles, DC-13, 24 V, 10 W 60 cyc/mn 0.5 IEC 60947-5-1 appendix C || 5000000 cycles, DC-13, 48 V, 7 W 60 cyc/mn 0.5 IEC 60947-5-1 appendix C
- Positive Opening
- with
- Mechanical Durability
- 15000000 cycles
- Minimum Force For Tripping
- 15 N
- Width
- 31 mm
- Repeat Accuracy
- 0.1 mm on the tripping points with 1 million operating cycles
Terminals Description Iso N°1(13-14)NO || (21-22)NC
Minimum Actuation Speed0.01 m/min
Cable Entry1 entry tapped for M16 x 1.5 cable gland 4-8 mm
[Uimp] Rated Impulse Withstand Voltage6 kV IEC 60664 || 6 kV IEC 60947-1
[Ui] Rated Insulation Voltage300 VUL 508 || 500 V 3)IEC 60947-1 || 300 VCSA C22.2 No 14
Positive Opening Minimum Force45 N
Contacts Insulation FormZb
Maximum Actuation Speed0.5 m/s
Contact Code DesignationA300, AC-15 (Ue = 240 V), Ie = 3 A 10 A EN/IEC 60947-5-1 appendix A || Q300, DC-13 (Ue = 250 V), Ie = 0.27 A EN/IEC 60947-5-1 appendix A
Depth30 mm
Maximum Resistance Across Terminals25 MOhm IEC 60255-7 category 3
Environment
- Product Certifications
- CCC || CSA || UL
- Ambient Air Temperature For Operation
- -25-70 °C
- Shock Resistance
- 50 gn 11 ms IEC 60068-2-27
- Ip Degree Of Protection
- IP66 IEC 60529 || IP67 IEC 60529
- Electrical Shock Protection Class
- class II IEC 61140 || class II NF C 20-030
Ik Degree Of ProtectionIK04 EN 50102
StandardsEN 60947-5-1 || IEC 60204-1 || IEC 60947-5-1 || CSA C22.2 No 14 || UL 508 || EN 60204-1
Vibration Resistance25 gn 10-500 Hz)IEC 60068-2-6
Ambient Air Temperature For Storage-40-70 °C
Protective TreatmentTC
Contractual warranty
- Warranty
- 18 months
Offer Sustainability
- Rohs Exemption Information
- Yes
- Environmental Disclosure
- ENVPEP110606EN
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- Eu Rohs Directive
- Pro-active compliance (Product out of EU RoHS legal scope)
Mercury FreeYes
Sustainable Offer StatusGreen Premium product
Circularity ProfileENVEOLI110603EN
